Surge Protector(REP-MPG25T1+T2-320-1S)

PRODUCTS DETAIL

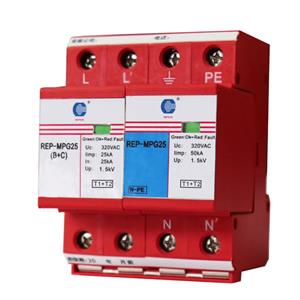

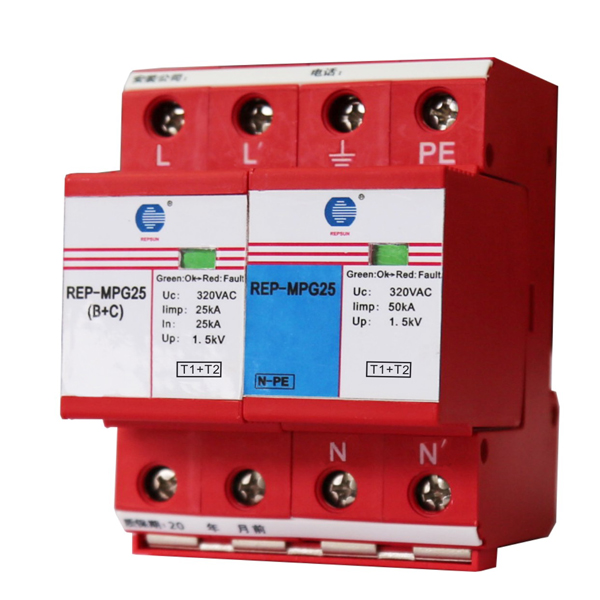

Product Picture

REP-MPG25T1-T2-320-1S

REP-MPG25T1+T2-320-1S

Features

Type1+Type2 combination pluggable surge protector

Non exhausting encapsulated spark gap technology with extremely high surge capacity

Iimp up to 25kA, low protection level≤1.5kV

LTR energy control technology, directly coordinated to next SPD without additional length

Datasheet

Model	REP-MPG25
The SPD according to IEC 61643-1/-11	Type 1+Type2
Energy coordination with terminal equipment(≤5m)	Type 1+Type2+ Type3
Nominal AC voltage UN	230 Vac
Maximum continuous voltage UC and UT	320Vac Ut=485V(L-N) for 6 Hours
Lightning impulse current(10/350μS)(L-N/N-PE]Iimp	25kA/ 50kA
Lightning impulse current(8/20μS)(N-PE]Imax	100 kA
Nominal discharge current(8/20μs) In	25/50kA
Response time (t.)	100 ns or less
Follow current extinguishing capability（L-N/N-PE）(Ifi)	25kA rms/100A rms
Follow current limitation/Selectivity	No tripping of a 20 A gL/ gG fuse up to 25 KArms
Voltage protection level [L-N] Up	≤1.5 KV
Voltage protection level [N-PE] Up	≤1.5 KV
Temporary overvoltage(TOV)[L-N] (UT)-Characteristic	440V/ 120min.-withstand
Temporary overvoltage(TOV)[N-PE] (UT)-Characteristic	1200V/ 200min.-withstand
Operating temperature range (parallel connection) Tu	-40℃...+80℃
Work/Fault indicator	Green: Normal ; Red: Failure
Cross-sectional area (min).	1.5 mm² solid/flexible
Cross-sectional area (max).	35 mm² flexible
For mounting on	35 mm DIN rail
Shell material	Red or black optional thermo plastic, UL 94 V-0
Degree of protection	IP20
Back-up fuse	315A gL/gG
Type of remote signaling contact	Changeover contact
