Lightning Event Counter

Lightning Counter

PRODUCTS DETAIL

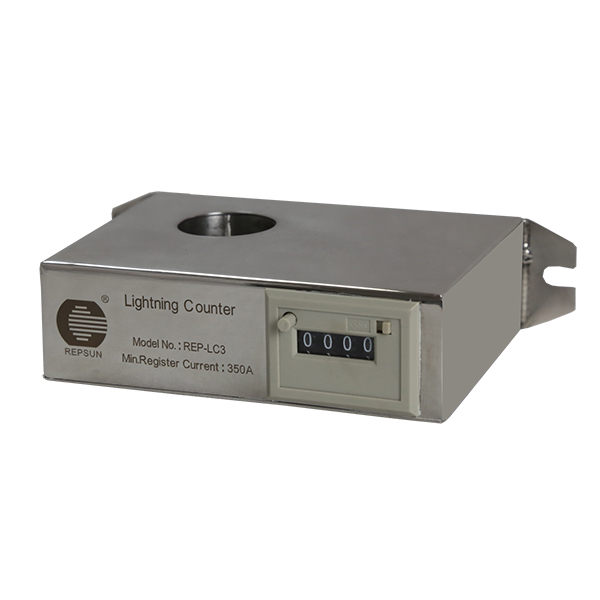

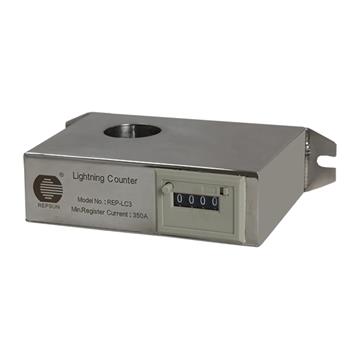

Product Picture

REP-LC3----1

3---

Features

Analogue type lightning counter.

6 digits display(0-999999).

Long service life due to No battery need.

Maintenance free.

Counting accurately.

Sensitive response and wide lightning current measuring range.

Easy to install and use.

Can be used together with all kinds of lightning protectors and equipment.

Datasheet

Lightning Counter

Type

REP-LC3

Minimum Current Sensitivity(rise time ≥8μs)

 >350A

Maximum Detectable Current(lmax)

100KA

Sequence of impulse

>1s

Display Model

Electromechanical Counter

Indicator

Lightning Event 0~999999

Current Sample Mode

Inductive Probe(Built-in)

Working Mode

No battery/No power supply needed

Operation Temperature(°C)

-20°C~+70°C

Dimension of Installation Window (mm)

30mm

Dimension of Counter(mm)

110×33×82mm

Enclosure Material

Metal plate

Net Weight

0.46kg



Request A Quote

refresh!
