Digital Lightning Counter(REP-LC6)

PRODUCTS DETAIL

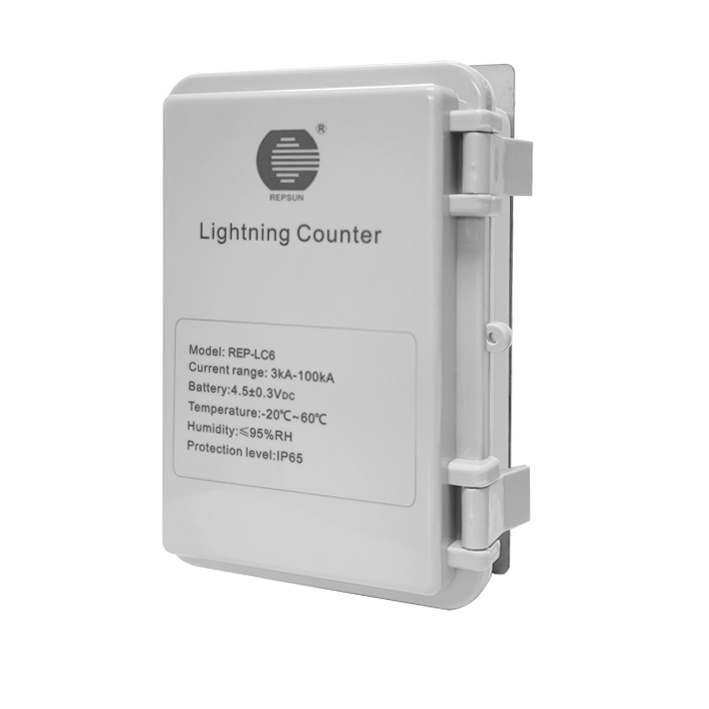

Product Picture

Features

REP-LC6 lightning data logger is used to detect the numbers of lightning impulse
current occurrence with the following characteristics:

● Being able to display 999999 numbers of lightning strike occurrence
● Precise counting, high sensitivity and wide testing range.
● Suitable installed at outdoors with IP65 enclosure
● Easy installation

The explosion-proof mark is ExibIICT6 Gb. It can be applied in the 1 zone, 2 zone and explosive
places. It passed the tests in the national testing center and be authorized with relative certificate

Datasheet

Digital Lightning Counter
Model	REP-LC6
Measuring range	100kA
Max counting	999999
Min response current	3kA
Response speed	1 time/60s
Enclosure protection degree	IP65
Operating temperature range	-20℃~60℃
Operating relative humidity(under room temperature)	≤90%RH
Battery	AA alkaline battery 1.5V,3pcs
Voltage	4.5±0.3Vdc
Working manner	Continuous
Installation	Round conductor:φ8-φ20mm ; Max flat conductor: 15*50mm
Altitude	≤3000m
Explosion-proof mark	ExibIICT6 Gb
