Lightning Event Counter

PRODUCTS DETAIL

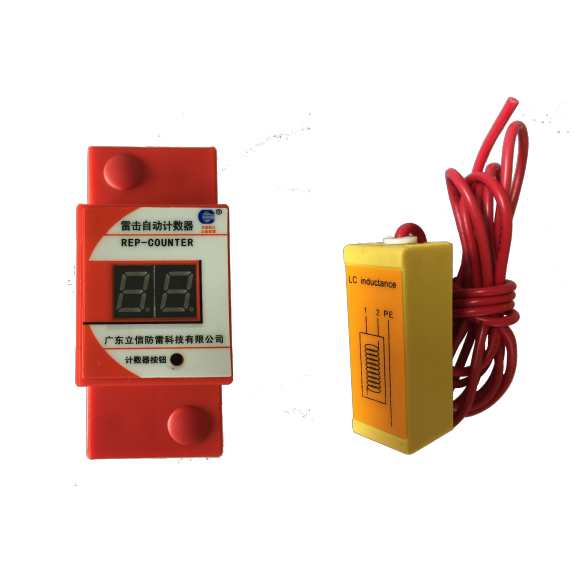

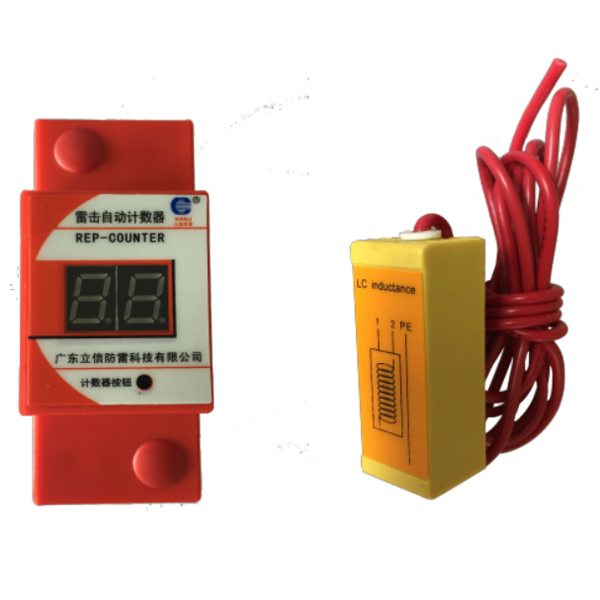

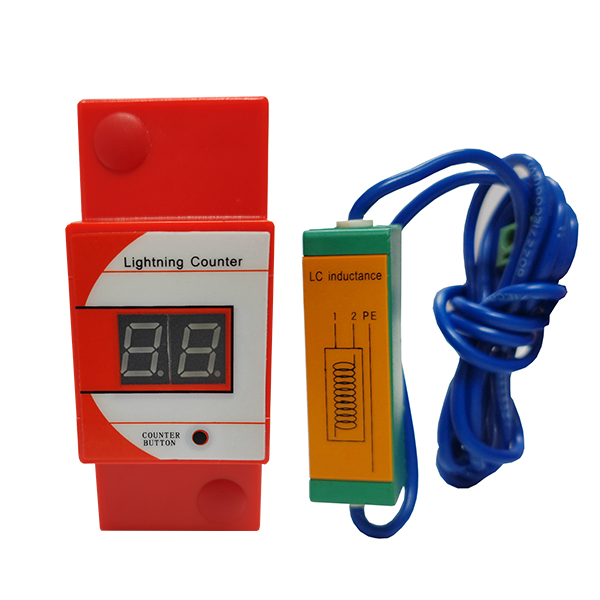

Product Picture

REP-LC1

1---_1

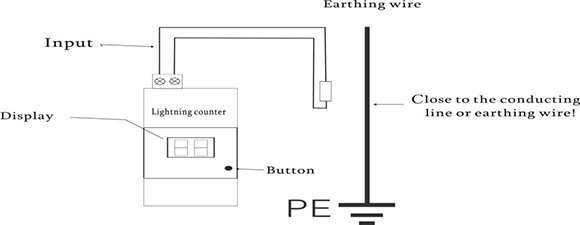

Basic Circuit Diagram

Features

Energy Saving Design, 160 mA battery will be working at least2 years without charging.

FLASH memory chip, result is saved permanently after powerfails.

Wave filtering technology makes it counts one lightning striketime for one continuous lightning strike.

Press TEST, display counter result.

Datasheet

Lightning Event Counter(REP-LC1)
Type	REP-LC1
Minimal detectable current	1KA
Maximal detectable current	100KA
Power supply	9V battery; changeable
Recording	By induction while lightning currentpass through down conduct
Response time	<10ns
Warranty	2 years
Display digit	00~99
Minimum current sensitivity	5A
Installation width	One standard modulu
Installation	35mm standard DIN rail(EN50022/DIN46277-3)
Enclosure material	Red thermoplastic UL94-V-0
Degree of protection	IP20
Net weight	0.7KG
