Lightning Counter (REP-LC2)

PRODUCTS DETAIL

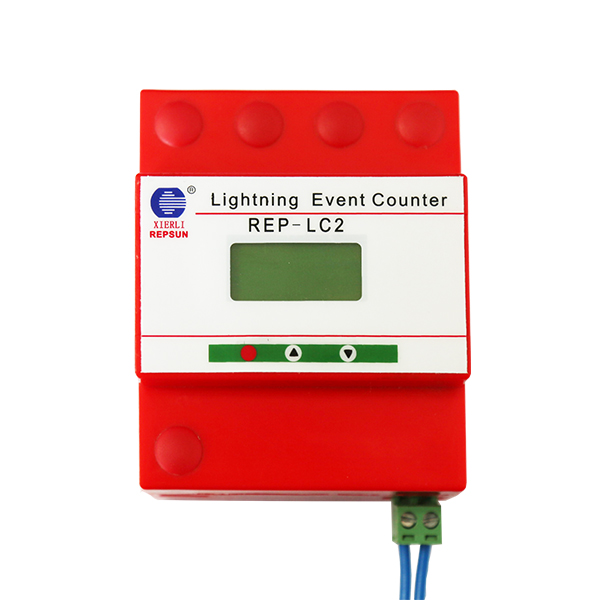

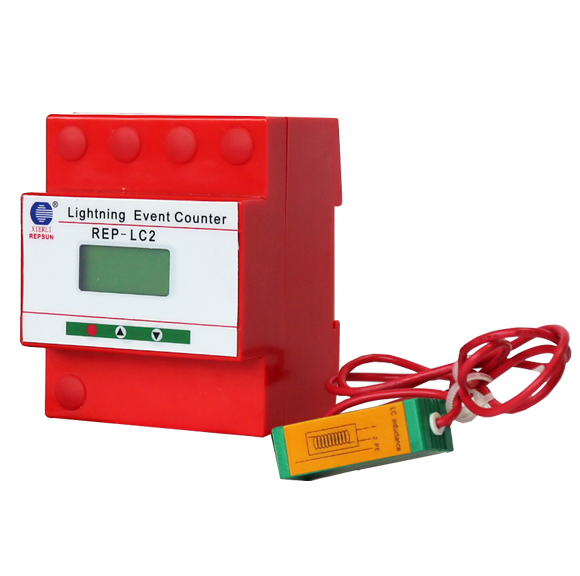

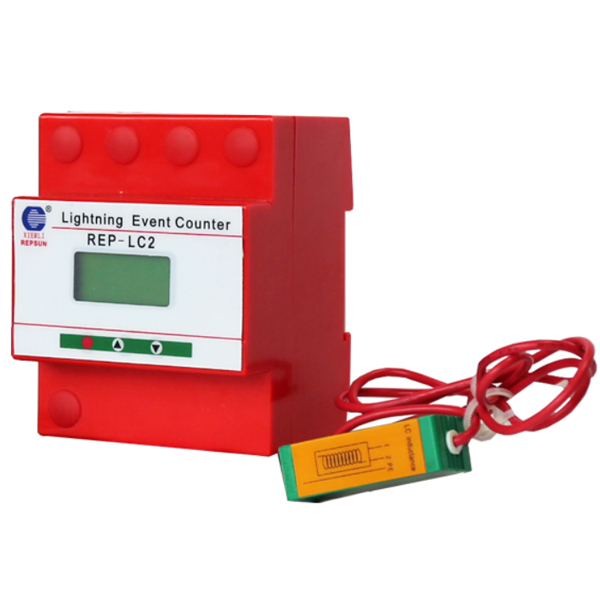

Product Picture

REP-LC2_1

2_2

2-1-

Features

● With an energy-efficient design,160mA battery can be used for 2 years without charging;

● Thanks to the FLASH memory chip,data records are permanently stored after a power outage;

● Only one lightning strike is recorded for a series of successive lightning strikes due to filter technology;

● Press TEST, and the counter results will be displayed.

Datasheet

Digital Flash Lightning Counter
Model	REP-LC2
Counting start current (8/20μs)	1KA
Maximum counting current (8/20μs)	100KA
Power supply	9V battery,changeable
Recording	By induction while lightning current pass through down conduct
Maintenance	Replaceable lithium batteries
Response time	＜10ns
Warranty	2 years

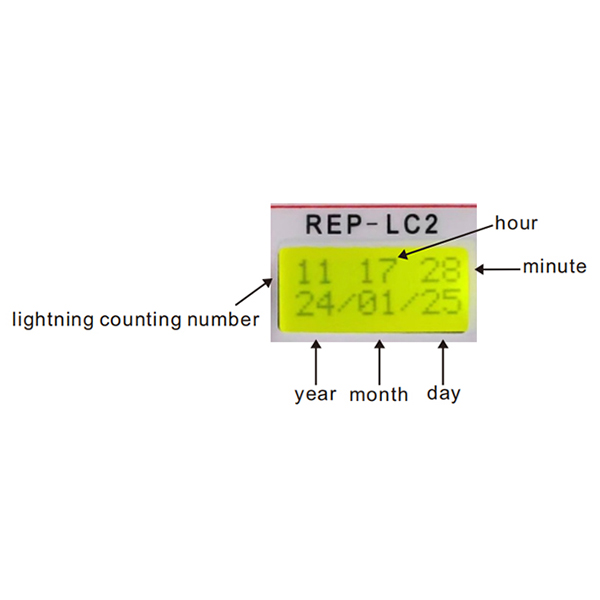

Display time(Can be set)	Year, Month, Day, Hour
Total count times	0-50
Installation width	Two standard modulus
Installation	35mm standard DIN rail (EN50022/DIN46277-3)
Enclosure material	Red thermoplastic UL94-V-0
Degree of protection	IP20
Net weight	0.7KG
