REP-TMOV40 Series
PRODUCTS DETAIL

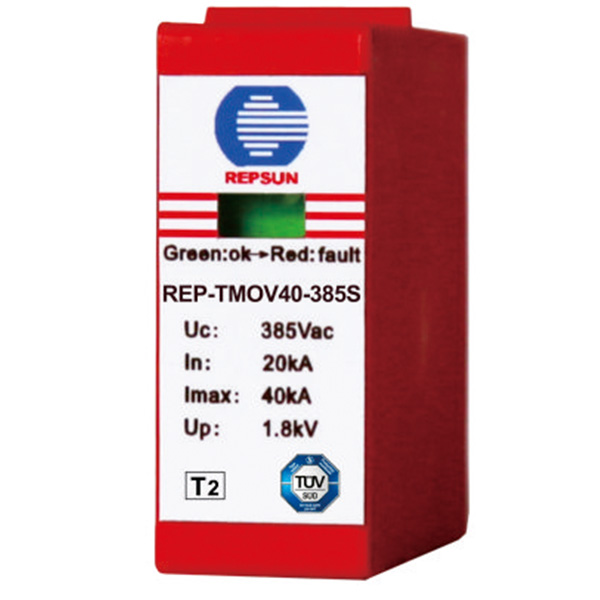

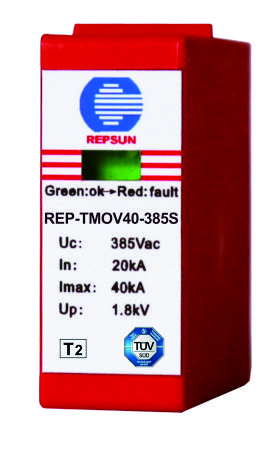

Product Picture
REP--TMOV40 Series
Features
•Small size, applied in PCB and panel SPD to absorb the surge and interrupt any abnormal current that may be encountered.

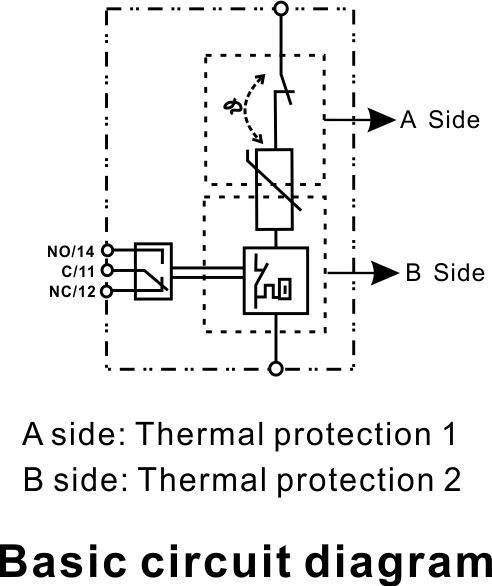

•New patent and TUV certified, quick thermal response and perfect circuit cutoff function due to double thermal disconnection design.
•Wide operating temperature range and high reliability
•Remote alarm contact optional.
Datasheet
| Type | REP-TMOV40-XXXS | ||||||
| The SPD according to IEC/EN 61643 | II/T2 | ||||||
| Maximum continuous operating voltage(Uc) | 440Vac | 385Vac | 320Vac | 275Vac | 150Vac | ||
| Nominal discharge current(8/20μs)(In) | 20kA | ||||||
| Maximum discharge current(8/20μs)(Imax) | 40kA | ||||||
| Voltage protection level(Up) | ≤2.0kV | ≤1.8kV | ≤1.5kV | ≤1.2kV | ≤1.1kV | ||
| Response time | 25ns | ||||||
| Operating temperature range | -40℃~+80℃ | ||||||
| Remote alarm contact | Remote alarm contact optional | ||||||
| Degree of protection | IP20 | ||||||
| Failure indication | Green: Normal ; Red: Failure | ||||||
| Enclosure material | Thermoplastic; extinguishing degree UL94-V0 | ||||||
| Technical feature | Double integrated disconnection devices with double protections | ||||||
 |
 |
||||||
| I |
