REP-PCB Series
PRODUCTS DETAIL

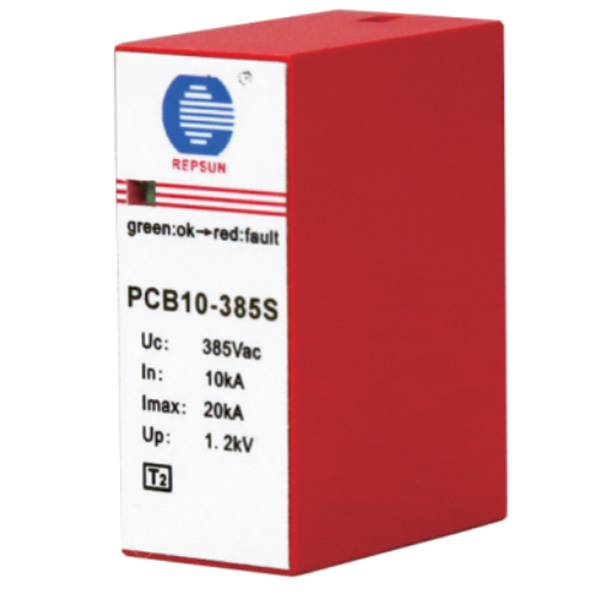

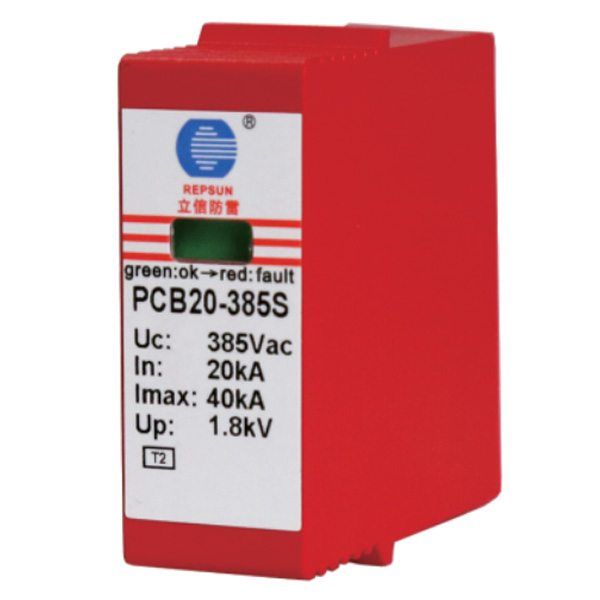

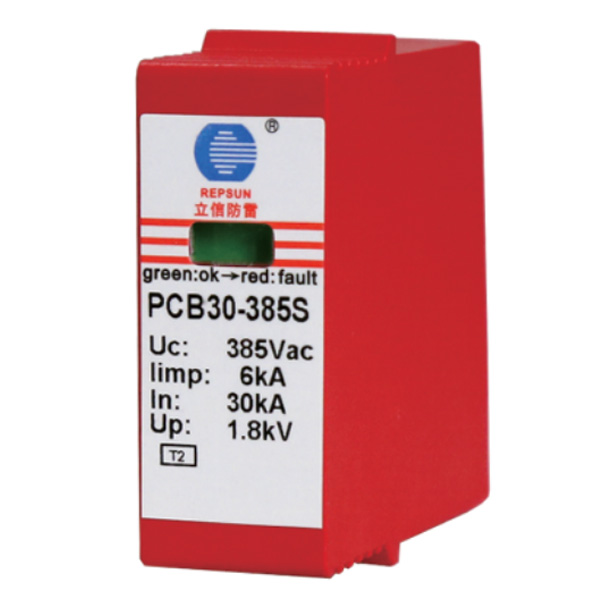

Product Picture
REP-PCB Series
Features
• Type2 surge protector comply with IEC61643-11.
• Fast response time≤25ns,low voltage protection level≤1.8kV.
• Reliable safety due to double integrated disconnectors with double protections.
• Failure indication window, remote alarm terminal optional.
Datasheet
|
Model |
REP-PCBXX-T2-385S
|
||||
| The SPD according to IEC 61643-1/-11 |
Type2 |
||||
| Maximum continuous voltage (Uc) | 385Vac | ||||
| Nominal discharge current (8/20μs) In |
30kA
|
20kA
|
10kA
|
||
|
Maximum discharge current (8/20μs) lmax |
60kA |
40kA
|
20kA
|
||
|
Voltage protection level(Up)
|
1.8kA
|
≤1.8kV
|
1.2kA
|
||
| Response time(t.) |
≤25ns |
||||
| Remote alarm contact |
Remote alarm contact optional |
||||
| Remote alarm contact capability Un/In | AC:250/0.5A DC:250V/0.1A;75V/0.5A | ||||
| Remote alarm contact connecting wire | Max.1.5mm² or#16AWG | ||||
| Remote communication contact type | Float switch contact | ||||
| Ac switching capacity |
250V/0.1A |
||||
| Operating temperature range |
-40℃~+80°C |
||||
| Work/Fault indicator | Green: Normal ; Red: Failure | ||||
| Enclosure material | Red thermoplastic material ,UL 94 V-0 | ||||
| The installation location | Indoor | ||||
| Degree of protection | IP20 | ||||
| Access method | PCB panel parallel connection | ||||
| Application system | AC/DC | ||||
| Installation method | PCB panel | ||||
  |
|||||
