Surge Protection for PCB and Panel SPD
PRODUCTS DETAIL

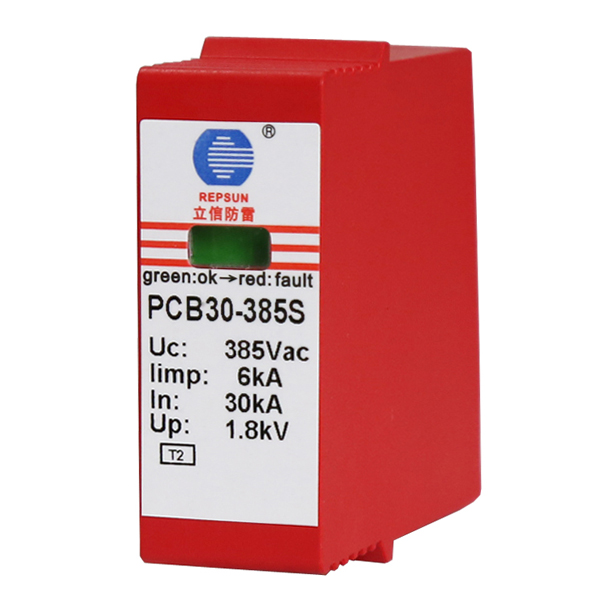

Product Picture
REP-PCB30-T2-385S
Dimension drawing(mm)
Basic circuit diagram
Features
● Type2 surge protector comply with IEC61643-11.
● Fast response time≤25ns,low voltage protection level≤1.8kV.
● Reliable safety due to double integrated disconnectors with double protections.
● Failure indication window, remote alarm terminal optional.
Datasheet
|
Model |
REP-PCB30-T2-385S |
||||
|
The SPD according to IEC 61643-1/-11
|
Type2 |
||||
|
Maximum continuous voltage (Uc)
|
385Vac
|
||||
|
Lightning impulse current(10/350μs) Iimp
|
6kA
|
||||
|
Nominal discharge current (8/20μs) In |
30kA
|
||||
|
Voltage protection level(Up)
|
≤1.8kV |
||||
|
Response time(t.)
|
≤25ns |
||||
|
Remote alarm contact
|
Remote alarm contact optional |
||||
|
Remote alarm contact capability Un/In
|
AC:250/0.5A DC:250V/0.1A;75V/0.5A
|
||||
|
Remote alarm contact connecting wire
|
Max.1.5mm² or#16AWG
|
||||
|
Remote communication contact type
|
Float switch contact
|
||||
|
Ac switching capacity
|
250V/0.1A |
||||
|
Operating temperature range
|
-40C-+80°C |
||||
|
Work/Fault indicator
|
Green: Normal ; Red: Failure
|
||||
|
Enclosure material
|
Red thermoplastic material ,UL 94 V-0
|
||||
|
The installation location
|
Indoor
|
||||
|
Degree of protection
|
IP20
|
||||
|
Access method
|
PCB panel parallel connection
|
||||
|
Application system
|
AC/DC
|
||||
|
Installation method
|
PCB panel
|
||||
