REP-MP40 Series
PRODUCTS DETAIL

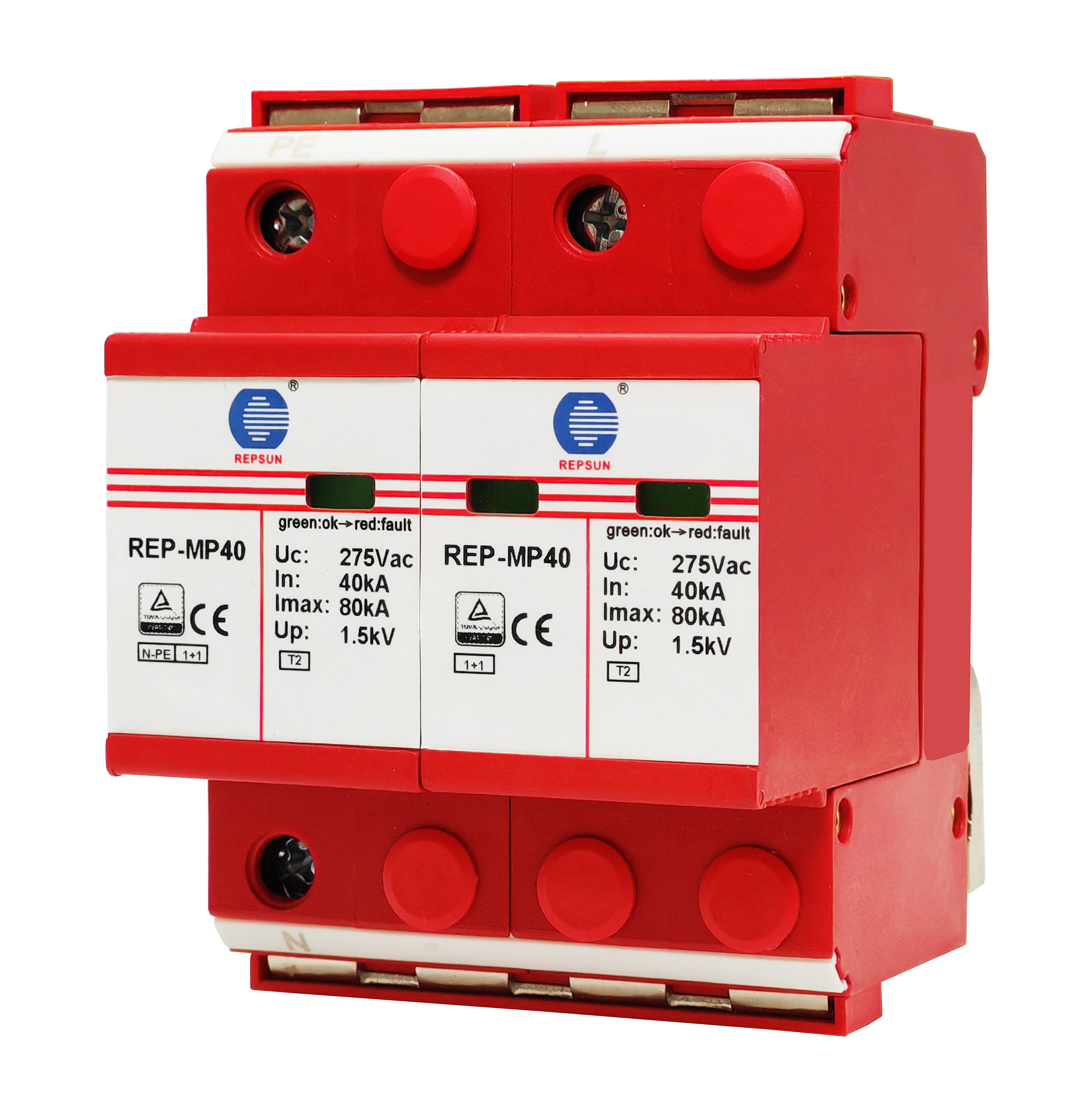

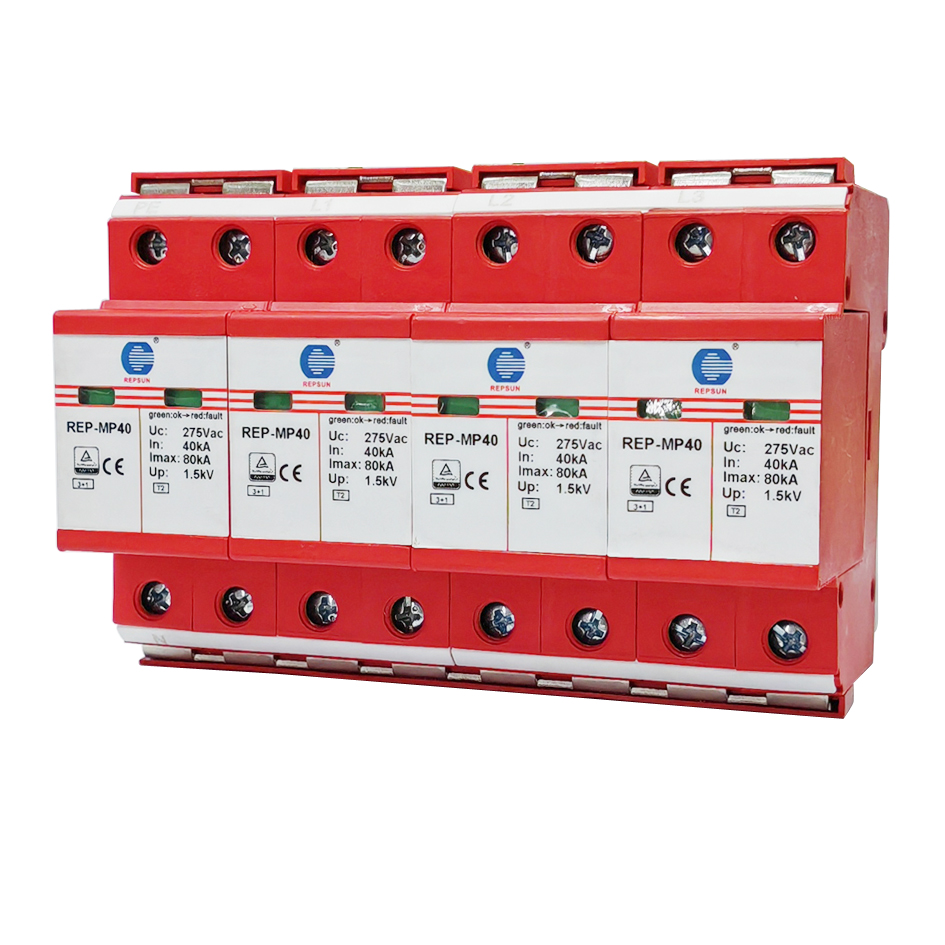

Product Picture
REP-MP40 Series
Features
●Type2 surge protector SPD.
●Fast response time(≤25ns) , low voltage protection level.
●Reliable safety due to double integrated disconnectors with double protections.
●Optional to use without a back up fuse.
●Failure indication window, remote alarm terminal optional.
Datasheet
| Type |
REP-MP40T2-XXX-XS
|
|
| The SPD according to IEC/EN 61643 |
II/T2
|
|
|
Maximum continuous operating voltage(Uc)[L-N]
|
385Vac
|
275Vac
|
|
Nominal discharge current(8/20μs)(In)
|
40kA
|
|
|
Maximum discharge current(8/20μs)(Imax)
|
80kA
|
|
|
Voltage protection level(Up)[L-N]
|
≤1.8kV
|
≤1.5kV
|
|
Response time
|
25ns[L-N/PE] /100ns[N-PE]
|
|
|
Operating temperature range
|
-40℃~+80℃
|
|
|
Remote alarm contact
|
Remote alarm contact optional
|
|
|
Degree of protection
|
IP20
|
|
|
Failure indication
|
Green: Normal ; Red: Failure
|
|
|
Enclosure material
|
Thermoplastic; extinguishing degree UL94-V0
|
|
|
Technical feature
|
Double integrated disconnection devices with double protections
|
|
 |
 |
|
