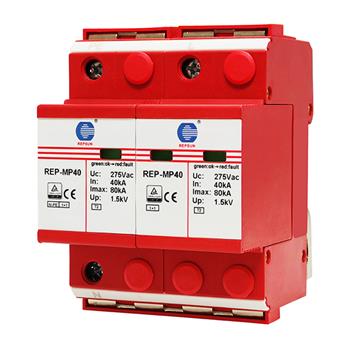

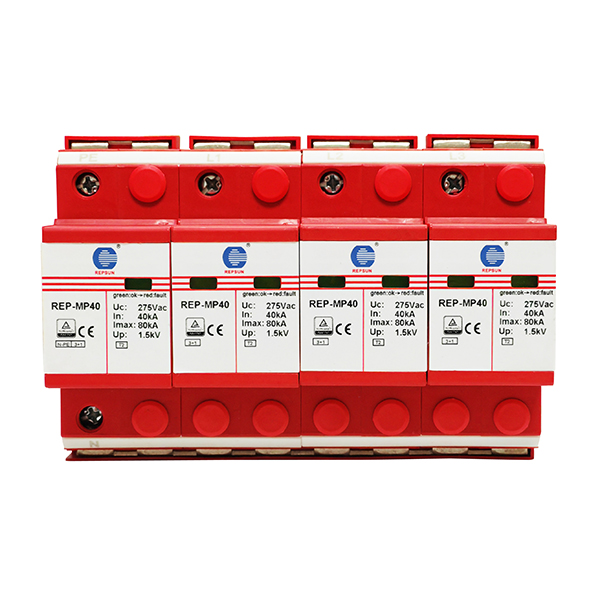

Surge Protector (REP-MP40T2-275-1S/3S)

PRODUCT DETAILS

PRODUCT PICTURES

Features

Type2 surge protector comply with IEC 61643-11.

Low voltage protection level.

Reliable supervasion due to double integrated disconnectors devices.

Optional to use without a fuse.

Pluggable design, 1+1 protection mode.

Remote alarm terminal optional.

Datasheet

Type	REP-MP40T2-275-XS
The SPD according to IEC 61643-1/-11	II/T2
Maximum continuous voltage Uc	275Vac
Impulse discharge current limp (10/350μs) (N-PE)	15kA
Nominal discharge current(8/20μs)In	40kA
Maximum discharge current(8/20μs)Imax	80kA
Voltage protection level (Up)@In	1.5kV
Voltage protection level Up [N-PE]	≤1.8kV
Response time(t.)	25ns
Temperature ovrvoltage(TOV) UT	385V/5sec.
Operating temperature range	-40℃~+80℃
The minimum cross-sectional area of installation	1.5mm² solid/flexible
The maximum cross-sectional area of installation	25mm² solid/flexible
Installation	35mm DIN rail, according to EN 60715
Remote alarm contact	NO/NC/C, Isolated Form C
Remote alarm contact capaility Un/In	AC:250/0.5A DC:250V/0.1A; 75V/0.5A
Remote alarm contact connecting wire	Max.1.5mm² or#16AWG
Degree of protection	IP20
Work/Fault indicator	Green: Normal ; Red: Failure
Enclosure material	Red thermoplastic material; UL94 V-0
Technical feature	Double integrated disconnection devices with double protections
The installation location	IP20
Size	4/6/8/16 modules
