REP-MP20 Series
PRODUCTS DETAIL

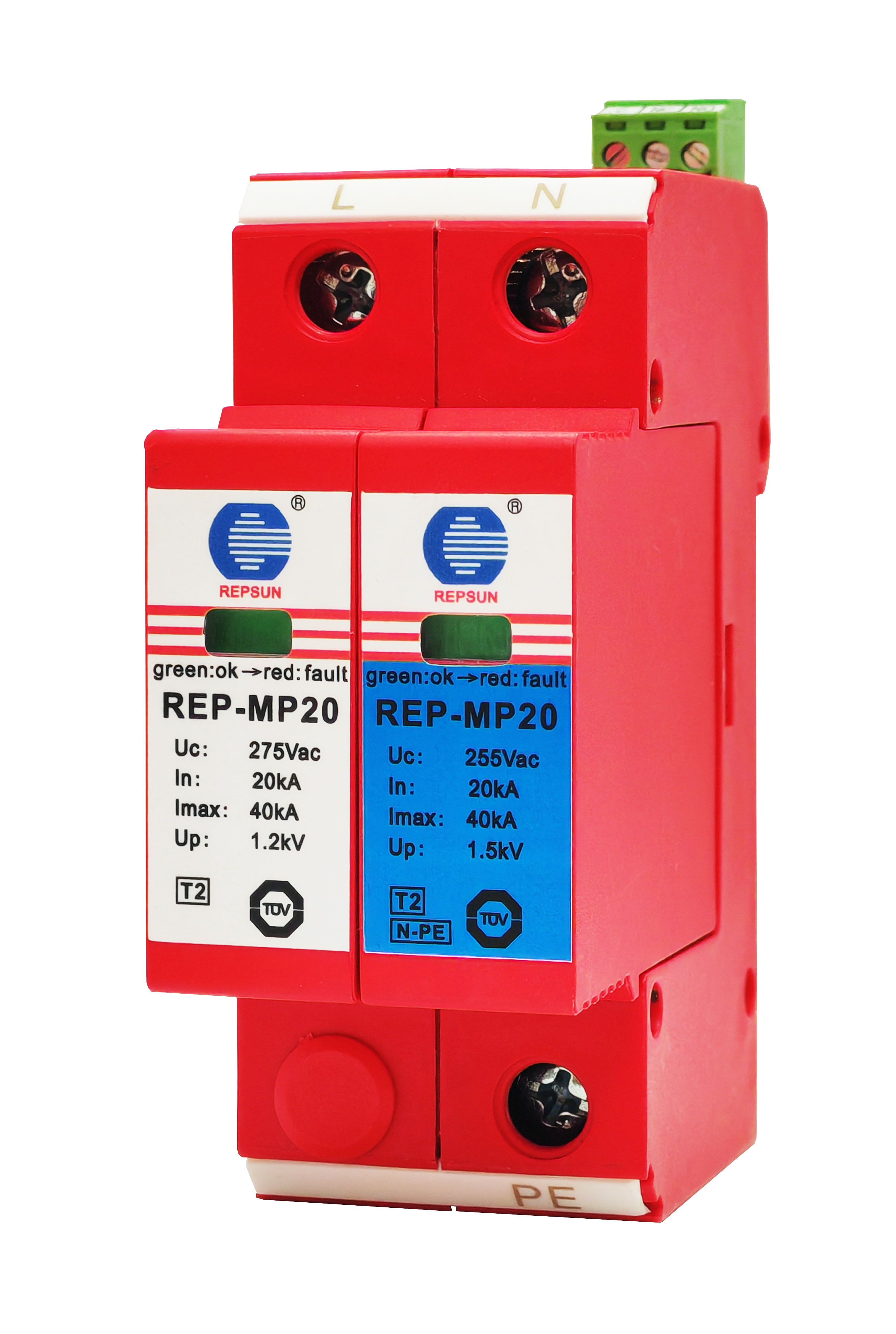

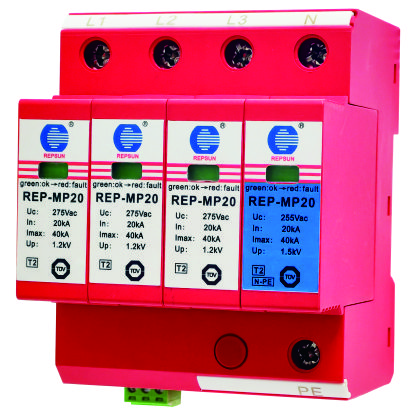

Product Picture
REP-MP20 Series
Features
●Type 2 surge protector SPD, low voltage protection level.
●Reliable safety due to double integrated disconnectors with double protections.
●Optional to use without a back up fuse.
●Failure indication window, remote alarm terminal optional.
Datasheet
| Type |
REP-MP20T2-XXX-XS
|
|||||
| The SPD according to IEC/EN 61643 | II/T2 | |||||
| Maximum continuous operating voltage(Uc)[L-N] | 440Vac |
385Vac
|
320Vac
|
275Vac
|
150Vac
|
|
|
Nominal discharge current(8/20μs)(In)
|
20kA
|
|||||
| Maximum discharge current(8/20μs)(Imax) |
40kA
|
|||||
| Voltage protection level(Up)[L-N] |
≤2.0kV
|
≤1.8kV
|
≤1.5kV
|
≤1.2kV
|
≤1.1kV
|
|
| Response time |
25ns[L-N/PE] /100ns[N-PE]
|
|||||
|
Operating temperature range
|
-40℃~+80℃
|
|||||
| Remote alarm contact |
Remote alarm contact optional
|
|||||
|
Degree of protection
|
IP20
|
|||||
| Failure indication |
Green: Normal ; Red: Failure
|
|||||
|
Enclosure material
|
Thermoplastic; extinguishing degree UL94-V0
|
|||||
|
Technical feature
|

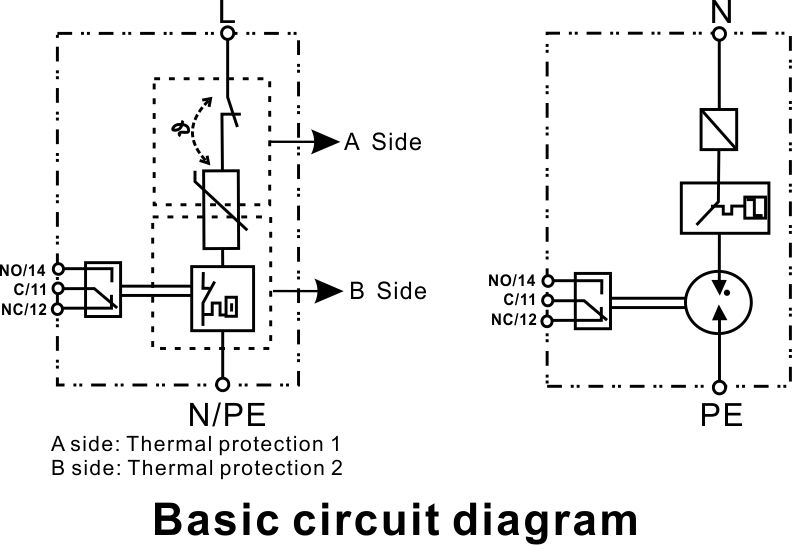

Double integrated disconnection devices with double protections
|
|||||
 |
 |
|||||
