Smart Lightning Monitoring System-Smart SPD

Smart Lightning Monitoring System-Smart SPD

PRODUCTS DETAIL

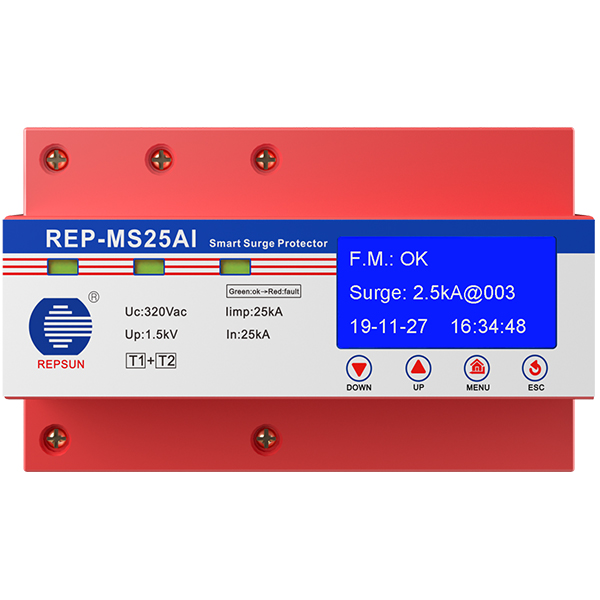

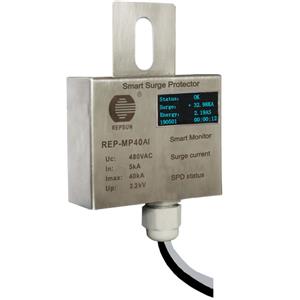

Genaral Look

Smart-LCM386-home_1
Smart-SPD-home_1



Features

● Integrated intelligent monitoring system surge protector.
● Patented core technology, lightning protection and intelligent monitoring of SPD working state, lightning intensity, polarity, energy, time, number, environmental temperature and humidity, etc.
● Monitoring parameters are automatically uploaded to the cloud, which provides early warning for product safety
● Integrated installation structure, no secondary wiring, the same as SPD installation, no need to upgrade, greatly saving labor and space.

Sensor Functions & Work Principle

Model

Smart SPD

Sensor Functions

Sensor Specification

SPD status(F.M.)

OK: Normal  FA: Abnormal

Lightning intensity (8/20μs)

0.1-100kA

Lightning counter

1~999

Lightning time

Year/month/day

Lightning energy

AS

Lightning current

0-1000μA

Temperature

-40℃~+80℃

Humidity

0~99%

System settings

Min, Hour, Day, Month, Year

System date

A-N model

System information

ID/HV/SV

j

Smart Surge Protection Device

Sensor Functions

Necessary

Data Transmission

Server

Terminal

Data Center

SPD Status(F.M.), Lightning intensity, counter, time

Host

DTU

(3G/4G/5G)

Cloud Server or REPSUN server

Web

History Record

Lightning energy, current, temperature, humidity

Host

RS485 &

MODBUS

Cloud Server or REPSUN server

On site

History Record
