Smart Lightning Monitoring System-Smart Outdoor SPD

Smart Lightning Monitoring System-Smart Outdoor SPD

Smart Outdoor Surge Protector

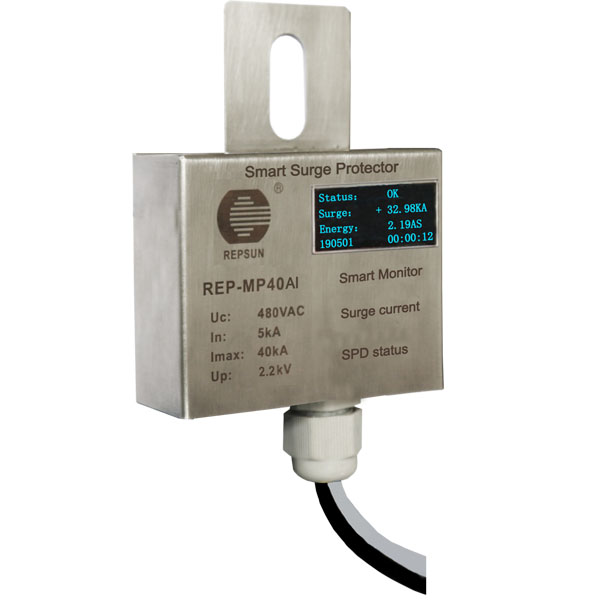

Product Picture (MP40AI)

2



Features

Real time online monitoring of SPD status and surge current by web platform and phone APP;
REP-MP40AI adopts UL certified MOV as the key component;
Max discharge current Imax(8/20μs):40kA at each path(L-PE;N-PE);
Easy installation, Sealed well for water-proof and inflaming retarding, suitable for harsh outdoor environment;

Datasheet

Type

REP-MP40AI

Smart Monitoring Host

Functions

Range

Surge current

0-100kA

SPD status

OK;Fault
Standard UL1449 4th; IEC61643-11:2016
Frequency 50/60Hz
Maximum continuous voltage(Uc) 480Vac
Nominal discharge current(8/20μs) In 5kA
Maximum discharge current(8/20μs) Imax 40kA
Impulse voltage(1.2/50μs) Uc 10kV
Voltage protection level(Up) @5kA <1.6kV
@10kA <2.2kV
Leakage current(IL) <0.1mA
Response time ≤25μs
Isolation voltage 6kV rms
Temporary over voltage TOV 335Vac, 5s
Operating temperature range -40℃~85℃
Work status Failure indication; Remote alarm contact optional
Installation wire Phase&Neutral line:black; Earth line:white
Wire specification UL 1015 Certified, 10AWG, 50cm
For mounting on Bolt fixing
Enclosure material 304 stainless steel
Degree of protection IP68
Seal material Epoxy resin
