SPD for LED street lighting

Surge protector for LED street lighting

PRODUCTS DETAIL

Product Pictures

LED Street Light Surge Protector 02

In series

LED Street Light Surge Protector 03

Din rail installation

LED Street Light Surge Protector 04

In parallel

LED Street Light Surge Protector 05

Side (mm)

LED Street Light Surge Protector 06

Front (mm)

LED Street Light Surge Protector 07

Diagram (In series)

LED Street Light Surge Protector 08

Side (mm)

LED Street Light Surge Protector 09

Front (mm)

LED Street Light Surge Protector 10

Diagram (In parallel)

Features

Three items optional, already attained CB certificate
Y circuit connection, offer full protection (L-N; N-PE; L-PE)
Mechanical disconnection and light indicator optional
High discharge capacity in a certain small size
Installation: wired connection and mounting optional
Protection mode: in series and in parallel optional

Datasheet

Type

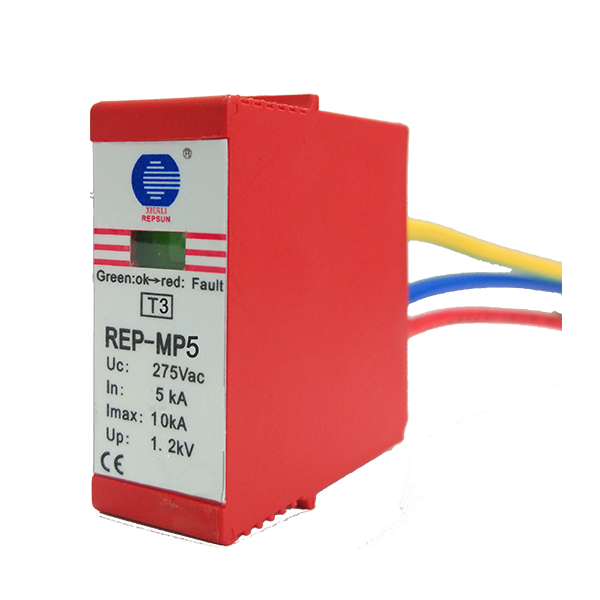

REP-MP5S

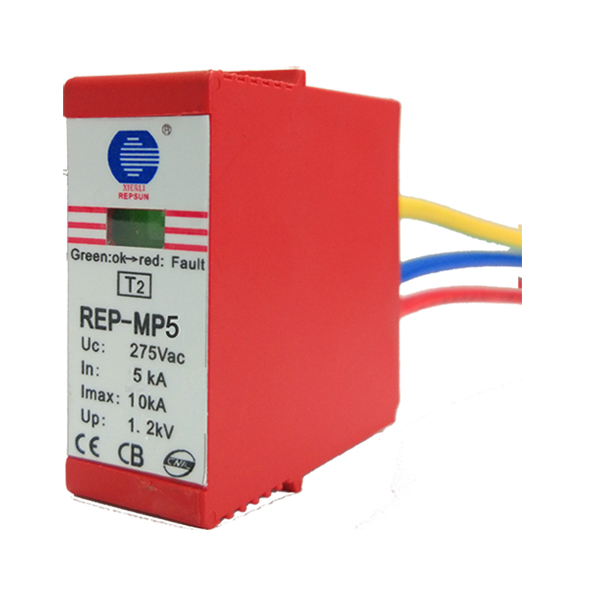

REP-MP5

The SPD according to IEC61643:11

III/T3

III/T3

Nominal AC voltage (Un)

220-227Vac

230Vac

Maximum continuous voltage (Uc)

420Vac

275Vac

385Vac

Nominal discharge current (8/20)In

5kA

5kA

Maximum discharge current(8/20)Imax

10kA

10kA

Voltage protection level (Up)

(L-N)    <1.5kV

(N-PE)  <1.0kV

<1.8kV

<1.2kV

Degree of protection

IP20

Failure indication

Green: Normal ; Red: Failure

Response time

(L-N)≤25ns   (N-PE)≤100ns

Operating temperature range

-40℃~+80℃

Enclosure material

Flame retardant material  UL94-V0

Remote alarm contact

Remote alarm contact optional

Installation Example

LED Street Light Surge Protector 11

Installation Diagram

LED Street Light Surge Protector 12

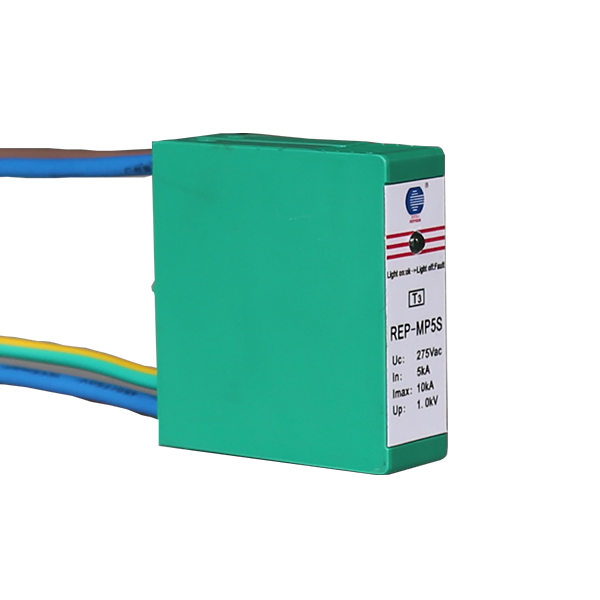

REP-MP5S

LED Street Light Surge Protector 13

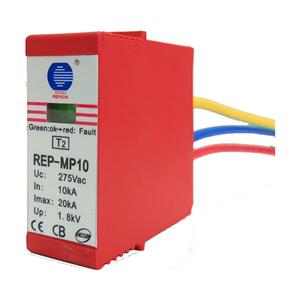

REP-MP10 (Y Circuit Connection)

Standard

1. IEC 61643:11-2016
2. UL 1449 4th
