SPD for street lighting
PRODUCTS DETAIL

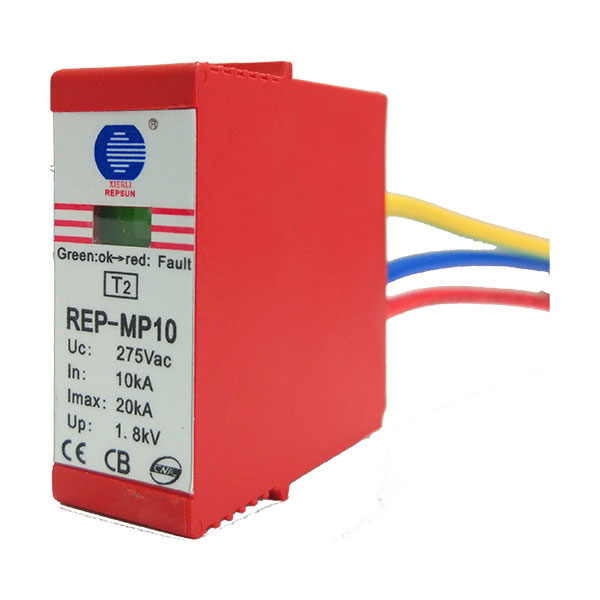

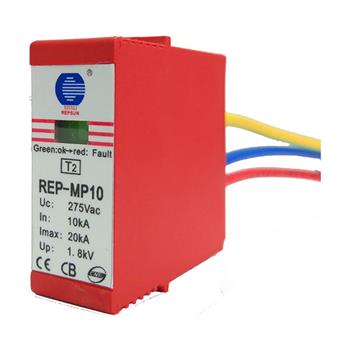

Product Pictures
In series
Din rail installation
In parallel
Side (mm)
Front (mm)
Diagram (In series)
Side (mm)
Front (mm)
Diagram (In parallel)
Features
Three items optional, already attained CB certificate
Y circuit connection, offer full protection (L-N; N-PE; L-PE)
Mechanical disconnection and light indicator optional
High discharge capacity in a certain small size
Installation: wired connection and mounting optional
Protection mode: in series and in parallel optional
|
Type |
REP-MP5S |
REP-MP10 |
||||
|
The SPD according to IEC61643:11 |
III/T3 |
III/T3 |
||||
|
Nominal AC voltage (Un) |
220-227Vac |
230Vac |
||||
|
Maximum continuous voltage (Uc) |
420Vac |
275Vac |
385Vac | |||
|
Nominal discharge current (8/20)In |
5kA |
10kA |
||||
|
Maximum discharge current(8/20)Imax |
10kA |
20kA |
||||
|
Voltage protection level (Up) |
(L-N) ＜1.5kV |
(N-PE) ＜1.0kV |
＜1.8kV |
＜1.5kV | ||
|
Degree of protection |
Ip20 |
|||||
|
Failure indication |
Green: Normal ; Red: Failure |
|||||
|
Response time |
(L-N)≤25ns (N-PE)≤100ns |
|||||
|
Operating temperature range |
-40℃~+80℃ |
|||||
|
Enclosure material |
Flame retardant material UL94-V0 |
|||||
|
Remote alarm contact |
Remote alarm contact optional |
|||||
Installation Example
Installation Diagram
REP-MP5S
REP-MP10 (Y Circuit Connection)
Standard
1. IEC 61643:11-2016
2. UL 1449 4th
