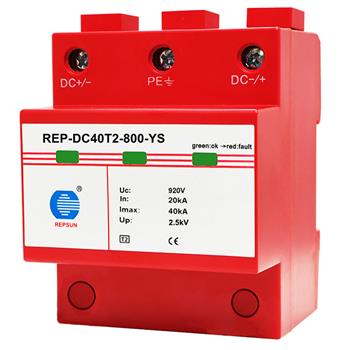

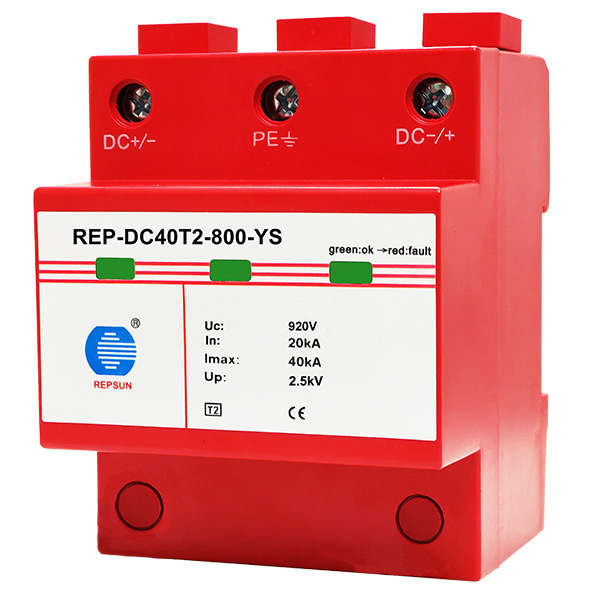

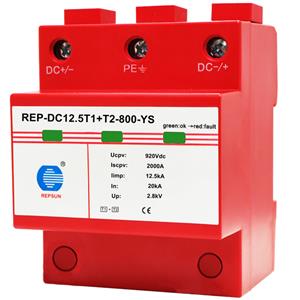

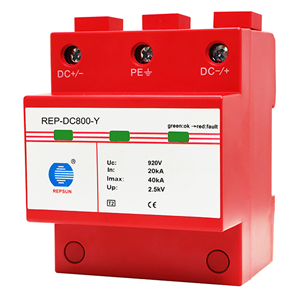

REP-DC40T2-800-YS

PRODUCT DETAILS

Features

Combined disconnection and short-circuiting device with safe electrical isolation in the protection module;
Reliable supervision due to double integrated disconnection devices;
Safe replacement of protection modules with arc extinguish due to integrated d.c. fuse;
Enough safety distance with creepage distance more than 30mm.

Datasheet

Model	REP-DC40T2-800-YS
According to IEC 61643-31:2018, EN 61643-31:2019	Type 2
Maximum continuous operating voltage (DC) Ucpv	≤920Vdc
Short-circuit current rating Iscor	2000A
Nominal discharge current(8/20μs) [(DC+/DC−)→PE] In	20kA
Maximum discharge current(8/20μs) [(DC+/DC−)→PE] Imax	40kA
Lightning Impulse current (10/350μs) [(DC+/DC−)→PE] (Iimp)	12.5kA
Voltage protection level(Up)	≤2.5kV
Recommended series connection overcurrent protector	63A/35kA
Response time(t.)	≤25ns
Leakage current	≤10μA
Internal overheating circuit breaker	Built-in
Operating temperature range	-40℃~+80℃
Work/Fault indicator	Green: Normal ; Red: Failure
Connecting wire	≥4mm²
Mounting	35mm DIN rail, according to EN 60715
Enclosure material	Red thermoplastic material ,UL94 V-0
Degree of protection	IP20
Installation width	4 modules
Dimensions(mm)	Diagram
