TMOV40-800S Surge Protector for Data Centers

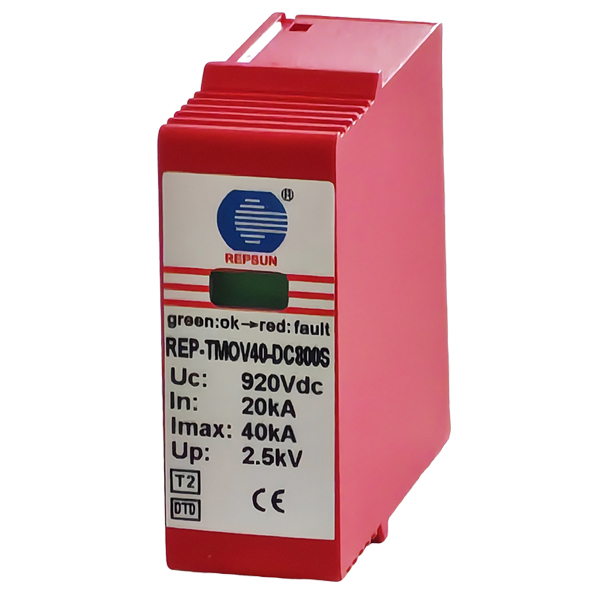

Product Picture
Features
- Small size, applied in PCB or SPD panel to absorb the surge and interrupt any abnormal current that may be encountered
- New patent and TUV certified, quick thermal response and perfect circuit cutoff function due to double thermal disconnection design
- Wide operating temperature range and high reliability
- Remote alarm contact optional
Datasheet
|
Model
|
REP-TMOV40-800S
|
|
The SPD according to IEC/EN 61643
|
Type 2
|
|
Nominal Voltage Un
|
800Vdc
|
|
The maximum operating voltage Uc
|
920Vdc
|
|
Maximum continuous operating voltage Uc
|
20kA
|
|
Nominal discharge current(8/20μs) In
|
40kA
|
|
Voltage protection level Up@In
|
≤2.5kV
|
|
Response time
|
≤25ns
|
|
Remote alarm contact
|
Remote alarm contact optional
|
|
Remote alarm contact capability Un/In
|
AC:250/0.5A DC:250V/0.1A;75V/0.5A
|
|
Remote alarm contact connecting wire
|
Max.1.5mm² or#16AWG
|
|
Operating temperature range
|
-40℃...+80℃
|
|
Work/Fault indicator
|
Green: Normal ; Red: Failure
|
|
Enclosure material
|
Thermoplastic; extinguishing degree UL94 V-0
|
|
Remote alarm contact
|
NO/NC/C,Isolated Form C
|
|
Degree of protection
|
IP20
|
|
Enclosure material
|
Red thermoplastic material ,UL 94v-0
|
|
Installation methods
|
PCB
|
|
Dimensions(mm)
|
Diagram
|
 |
 |
