Smart Lightning Monitoring System-Smart Grounding System Monitor(GSM26 Power Supply)

Smart Lightning Monitoring System-Smart Grounding System Monitor(GSM26 Power Supply)

PRODUCT DETAILS

Product Picture

tu-3x2

Smart GSM26
front_2

Dimension drawing(mm)

side_2

Side

mart-gsm-back-3x2

Back

Features

  • REPSUN Smart GSM for continuous grounding resistance test in real time based on IoT technology, as well as other parameters such as lightning intensity, lightning counter, leakage current, grounding wire connectivity, along with environmental temperature and humidity.
  • Smart GSM is capable of storing all monitored data on both local and cloud servers, and the information is displayed in real time on an LCD screen and a web platform.
  • Smart GSM is designed to trigger an immediate alarm for any anomalies in the grounding resistance, and allow customers to set user alarm thresholds. With a storage capacity of up to 2000 data records, it facilitates long-term data tracking and analysis.
  • By assessing changes in grounding resistance, Smart GSM can identify fluctuations in the grounding system and send out alarm signal in the case of disconnection of grounding wire, deterioration of grounding conditions, aging of grounding facilities, or equipment theft, which ensures the stability and safety of the grounding system.

Functions

Model

Smart GSM26
Test functions
Range
Alarm threshold
Grounding resistance
0.01-200Ω(Tolerance:±5%)
User defined
Surge intensity
0.1-100kA
User defined
Surge counter
0-999
User defined
Surge time
Year/Month/Day
/
Grounding wire connectivity
On/Off
/
Operating temperature
-40℃-65℃
Humidity
0-99%



Operating Principle

mart-gsm-structure-8x4_1

Smart Grounding System Monitor

Sensor functions

Necessary

Date transmission

Server

Terminal

Data center

Grounding resistance,surge intensity,surge time, surge counter,

grounding wire connectivity, operating temperature, humidity.

Host

DTU(3G/4G/5G)

Cloud

server

Web platform/On site(LCD Screen)

History record

Grounding resistance,surge intensity,surge time, surge counter,

grounding wire connectivity, operating temperature, humidity

Host

RS485&MODBUS

Local

server

Web platform/On site(LCD Screen)

History record

Specifications

Power Supply
AC/DC adapter;Input:AC100-240V,50-60Hz 0.6A;Output:DC12V 2.0A
Test Method
Leakage current
Alarm Indication
Sound & Light alarm
Alarm Settings
LCD display setting
Measuring Time
Interval and Settable
Power Consumption
Backlight:20mA Max;Standby:25mA Max;Measuring:70mA Max
Remote Communication
Wireless transmission,5G/4G,GPRS,RS485,MOD-BUS(optional)
Accessories
Lightning Strike Sensor, Grounding Sensor, Power adapter
Data Records
Can store 2,000 data records
System Settings
Min,Hour,Day,Month,Year
System Date
A-N model
System Information
ID/HV/SV
Dimensions
144mm*74mm*89mm
Weight
<1kg

Smart GSM Application & Installation

-jiegoutu-8x4

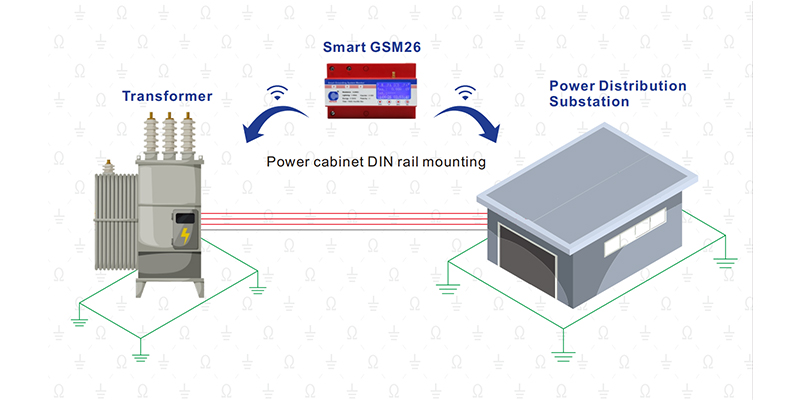

Smart GSM Installation Diagram

Smart-gsm-diagram-8x4

Smart GSM Application

mart-gsm-application-8x4_1
