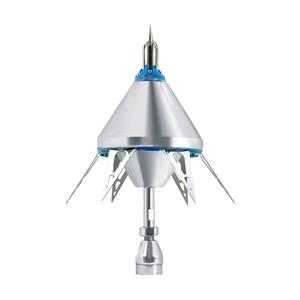

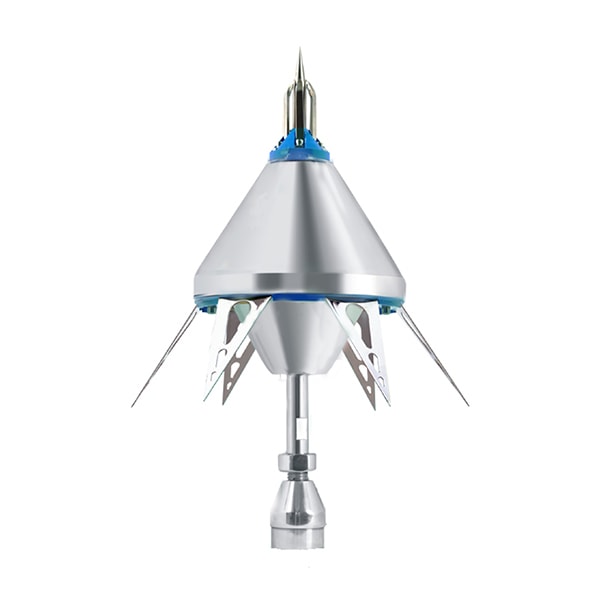

REPSUN ESE lightning rod (ESE88)

Type

REP-ESE88‚

Characteristics

Efficiency

ΔT

60μs

Standard deviation ESE / Single rod

σ

σPDA <0.4σpts

Lightning current withstanding

test (10/350µs)

Iimp

100KA (normative test)

Max. current withstanding test (8/20µs)

Imax

200 KA

Upward pole

6

Down pole

6

Net Weight

4.0kg

Operating principles

Detection of download leader

Continuous measuring of electric field gradient(ΔE/ΔT)

Upward streamer development conditions

Patented  technology optimizing the streamer development conditions

Upward streamer emission

Sparking by High Voltage Impulses

Internal circuits

6 independent and synchronized circuits

Central rod

Stainless Steel 304,Φ20mm

Metal housing

Stainless Steel 304

On-site testing capabilities

REP-ESE TESTER

Maintenance

No need  the power source

Warranty

10 years

Mechanical specifications

Fixing on pole

M20 Thread

Down conductor connection

Specific Adapter and  Clamp for options

Packaging

Dimensions

394 x305 x305  mm

Contents

ESE Instruction

Gross Weight

5KG

Environmental sustainability

100% recyclable

Certifications

NF C 17 102:2011, Annexe C

Beijing Testing Center Of Surge Protection   Test Report No.2008-(ESE)-003J14
