REP-MS25 Series
PRODUCTS DETAIL

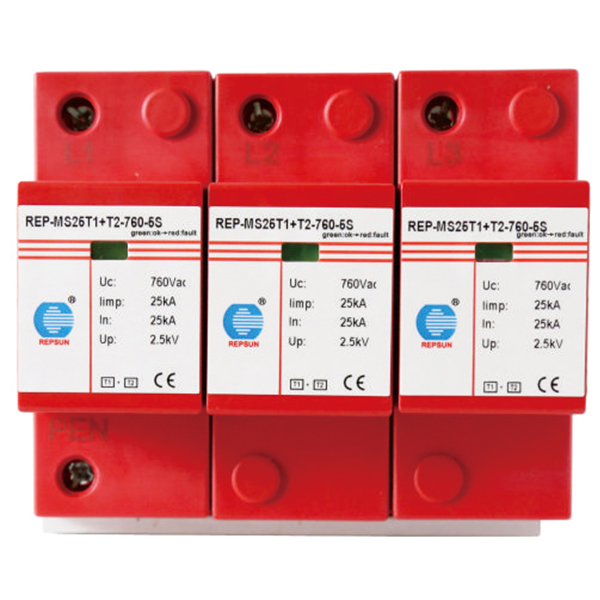

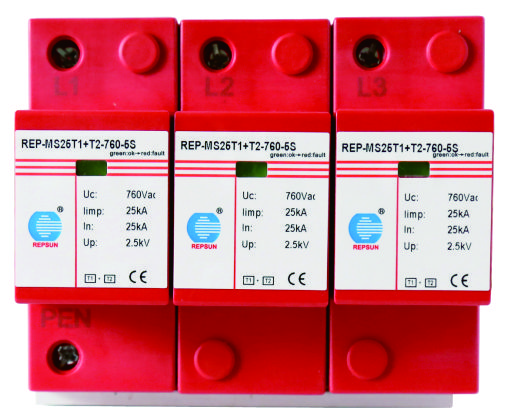

Product Picture
REP-MS25 Series
Features
●Small combination T1+T2 SPD surge protector.
●Non exhausting encapsulated spark gap technology.
●High follow current extinction and limitation due to no follow current.
●Reliable supervision due to new LTR energy control technology.
●With remote signaling contact optional and mechanical failure indicator.
Datasheet
|
Model
|
REP-MS25T1+T2-320-2S |
|
The SPD according to IEC/EN 61643-1/-11 |
Type 1+Type 2
|
|
Nominal AC voltage(Un)
|
690Vac
|
|
Maximum continuous operatingvoltage(Uc)
|
760Vac
|
|
Nominal discharge current (8/20μs)(In)
|
25kA
|
|
Lightning impulse current(10/350μs) [L-N/N-PE] (Iimp)
|
25kA
|
|
Total discharge current(10/350μs)[L1+L2+L3-PEN](Itotal)
|
75kA
|
|
Voltage protection level(Up)@10kA(8/20μs)
|
≤2.5kV
|
|
Voltage protection level(Up)@25kA(8/20μs)
|
≤3.5kV
|
|
Response time
|
≤100ns
|
|
Backup fuse
|
315AgL/gG
|
|
Temporary overvoltage(TOV) [L-PEN](UT )
|
440V / 120min
|
|
Follow current extinguishing capability a.c.[L-N/N-PE](Ifi)
|
25kA rms
|
|
Remote alarm contact
|
Remote alarm contact optional
|
|
Remote alarm contact capability (Un/In)
|
AC:250/0.5A DC:250V/0.1A;75V/0.5A
|
|
Remote alarm contact connecting wire
|
Max.1.5mm² or#16AWG
|
|
Remote communication contact type
|
Float switch contact
|
| Ac switching capacity |
250V/0.1A
|
|
Operating temperature range
|
-40℃~+80℃
|
|
Work/Fault indicator |
Green: Normal ; Red: Failure
|
|
The minimum cross-sectional area of installation
|
4 mm² solid/flexible
|
|
The maximum cross-sectional area of installation
|
25 mm² flexible
|
|
Installation
|
35mm DINrail,according to EN 60715
|
|
Enclosure material
|
Red thermoplastic material ,UL 94v-0
|
|
Degree of protection
|
IP20
|
|

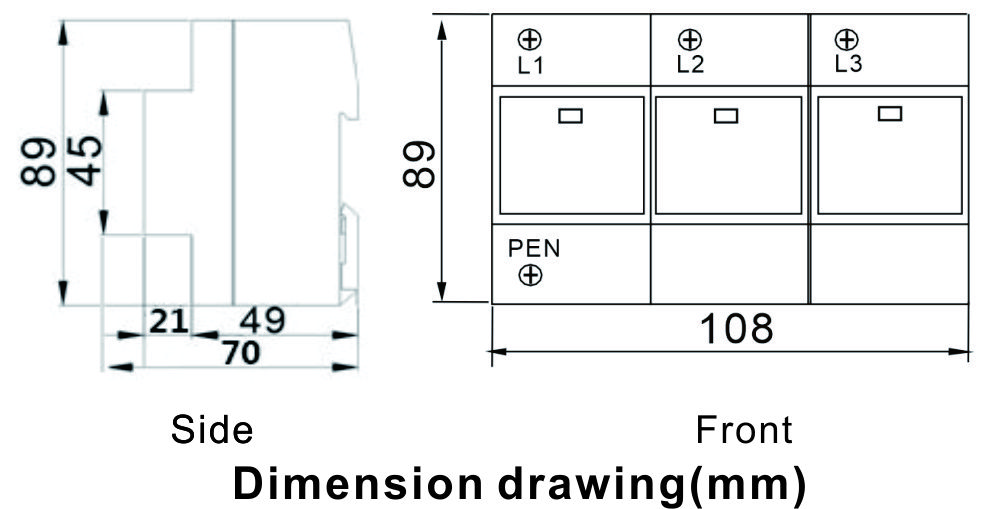

Size
|
6 modules
|
|
|
 |
