Equipotential Connector

Equipotential Connector

PRODUCTS DETAIL

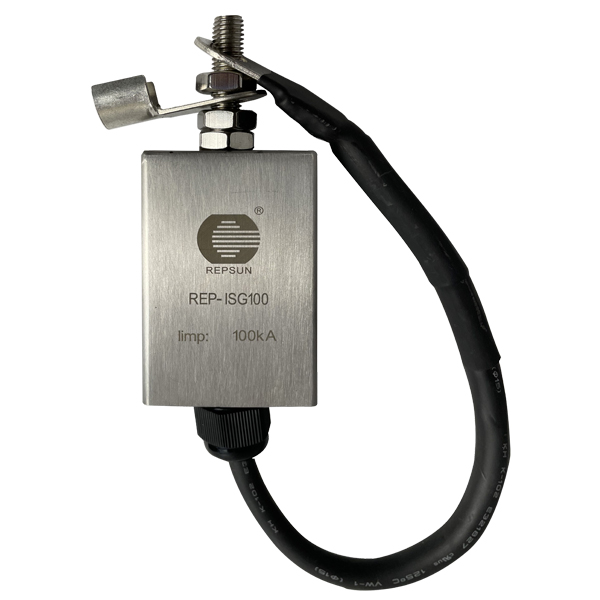

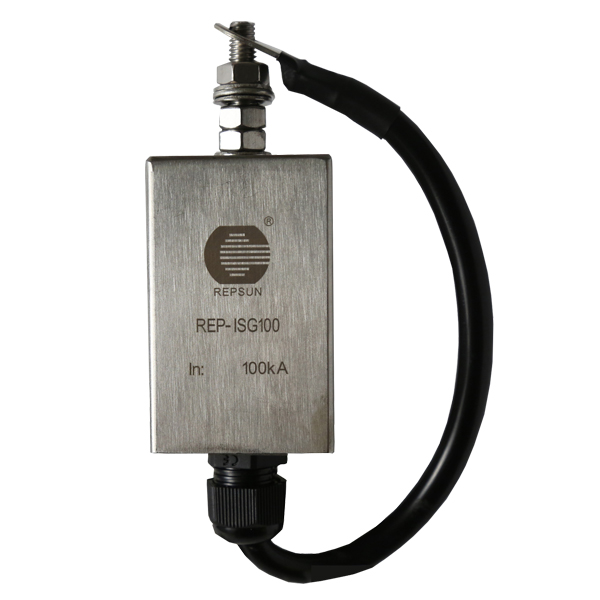

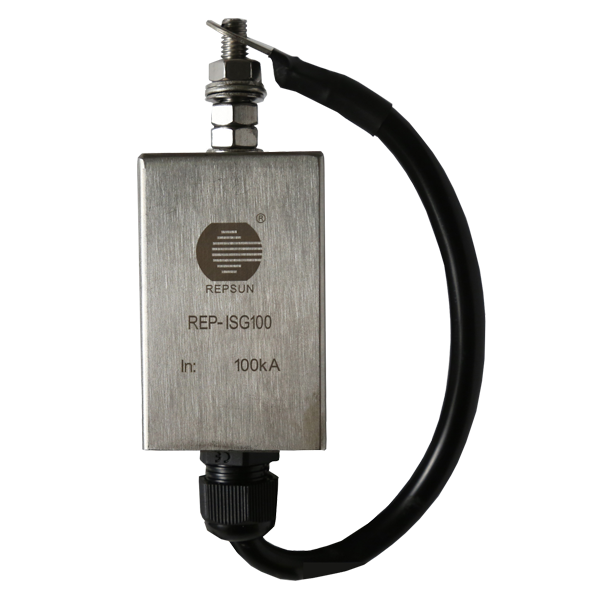

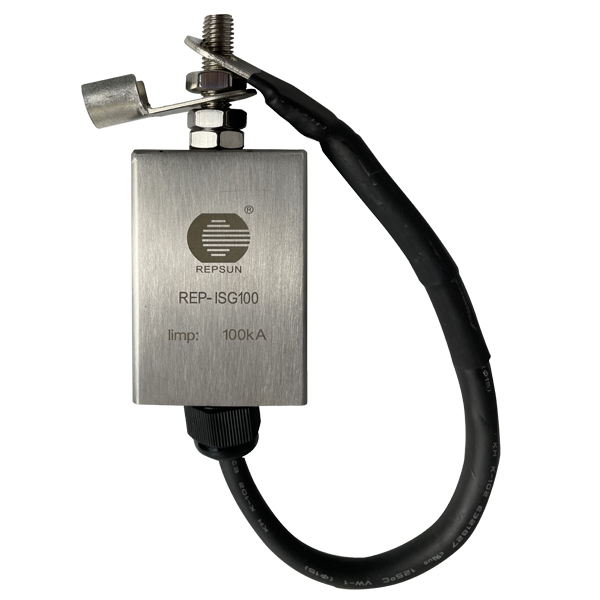

Product Picture (REP-ISG100)

100-02


Features

Adopt high quality switching devices with fast response characteristicsIt is used to make equipotential connection to isolate the interference in power protection ground,direct lightning ground and signal ground Installed between two grounding busbars or between two grounding devices.
● Isolating spark gap
● Outdoor or indoor application
● Discharge current up to 100 kA

Datasheet

Type

REP-ISG100
Lightning impulse current (10/350) Iimp

100kA
Nominal discharge current (8/20) In

100kA
Rated power frequency withstand voltage (50Hz)

300V
Power frequency jump voltage Uaw (50Hz)

≤ .1 2kV

Degree of protection



IP67
Operating temperature range (TU)

-20 ~+80 ℃ ℃
Connection line

H01N2-D25mm,with terminal and M10 screw/nut
