Type1+Type2+Type3 SPD
PRODUCTS DETAIL

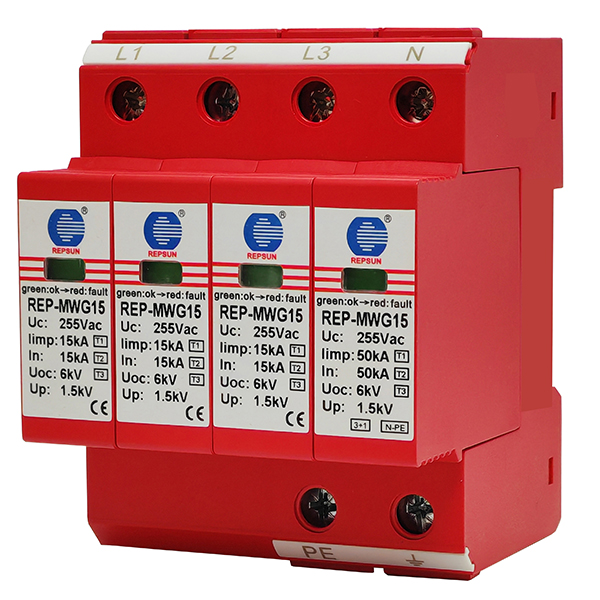

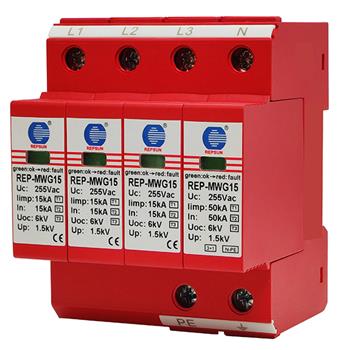

Product Picture
REP-MWG15T1+T2+T3-255-3S
Dimension drawing(mm)
Basic circuit diagram
Features
- Small combination T1+T2+T3 SPD surge protector only 72mm for three phases.
- Spark gap technology with high surge capacity and low voltage protection level.
- High follow current extinction and limitation due to no follow current.
- Reliable supervision due to new LTR energy control technology.
- With remote signaling contact optional and mechanical failure indicator.
Datasheet
|
Model |
REP-MWG15T1+T2+T3-255-3S
|
||
|
The SPD according to IEC/EN 61643-11
|
I+II+III+/T1+T2+T3
|
||
|
Energy coordination with terminal equipment(≤5m)
|
T1+T2+T3
|
||
|
Nominal AC voltage(Un)
|
230/400Vac(50/60Hz)
|
||
|
Maximum continuous voltage(Uc)
|
255Vac(50/60Hz)
|
||
|
Lightning impulse current(10/350μs) Iimp(L-N/N-PE)
|
15kA/50kA
|
||
|
Specific energy(L-N)/(N-PE)(W/R)
|
156.25kJ/ohms
|
||
|
Nominal discharge current(8/20μs)In(L-N/N-PE)
|
15kA/50kA
|
||
|
Maximum discharge current(8/20μs)Imax(L-N/N-PE)
|
100kA/120kA
|
||
|
Open circuit voltage(1.25/50μs)(Uoc)
|
6kV
|
||
|
Response time
|
≤100ns
|
||
|
Voltage protection level Up@In
|
≤1.5kV
|
||
|
Temporary overvoltage (TOV)(L-N)(UT)-Characteristic
|
≥440V/120min.-withstand
|
||
| Temporary overvoltage (TOV)(N-PE)(UT)-Characteristic | ≥1200V/120ms.-withstand | ||
|
Additional abnormal voltage test:485Vac/50Hz for 24h
|
withstand
|
||
|
Backup fuse(only required if not already provided in mains)
|
≤400A gL/gG
|
||
|
Remote alarm contact
|
NC/C,
|
||
|
Remote alarm contact capability Un/In
|
AC:250/0.5A DC:250V/0.1A;75V/0.5A
|
||
|
Remote alarm contact connecting wire
|
Max.1.5mm² or #16AWG
|
||
|
Operating temperature range
|
-40...+80℃
|
||
|
Work/Fault indicator
|
Green: Normal ; Red: Failure
|
||
|
Cross-sectional area (min.)
|
1.5mm²solid/flexible
|
||
|
Cross-sectional area (max.)
|
35mm²flexible
|
||
|
For mounting on
|
35mm DIN rail
|
||
|
Enclosure material
|
Red thermoplastic, UL94 V-0
|
||
|
Degree of protection
|
IP20
|
||
|
Size
|
4 modules
|
||
