PRODUCTS DETAIL

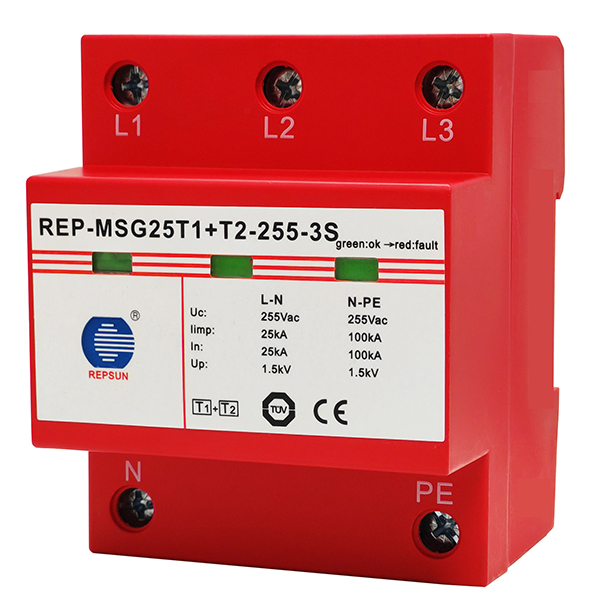

Product Picture
REP-MSG25 Series
Features
1.Smallest size T1+T2 SPD, only 36mm for single phase, 72mm for three phases.
2.Non exhausting encapsulated spark gap technology with extremely high surge capacity.
3.High surge capacity of 25kA10/350μs per pole, no follow current.
4.Voltage protection level(Up)≤1.5kV.
5.LTR energy control technology, directly coordinated to next SPD without additional length
Datasheet
|
Type
|
REP-MSG25T1+T2-XXX-XS
|
|
|
The SPD according to IEC/EN 61643-11 |
I+II/T1+T2 |
|
|
Energy coordination with terminal equipment(≤5m) |
T1+T2+T3 |
|
|
Maximum continuous operating voltage(Uc)
|
255Vac
|
320Vac |
|
Lightning impulse current(10/350μs)(limp)[L-N,N-PE]
|
25kA/100kA
|
|
|
Nominal discharge current(8/20μs)(In)[L-N,N-PE]
|
25kA/100kA
|
|
|
Maximum discharge current(8/20μs)(Imax)[L-N,N-PE]
|
160kA
|
|
|
Voltage protection level(Up)
|
≤1.5kV
|
|
|
Operating temperature range
|
-40℃~+80℃
|
|
|
Response time
|
≤100ns
|
|
|
Failure indication
|
Green: Normal ; Red: Failure
|
|
|
Remote alarm contact
|
Remote alarm contact optional
|
|
|
Degree of protection
|
IP20
|
|
|
Enclosure material
|
Thermoplastic; extinguishing degree UL94-V0
|
|
|
Technical feature
|
No exhausting encapsulated spark gap technology
|
|
 |
 |
|
