REP-MSG15 Series

PRODUCTS DETAIL

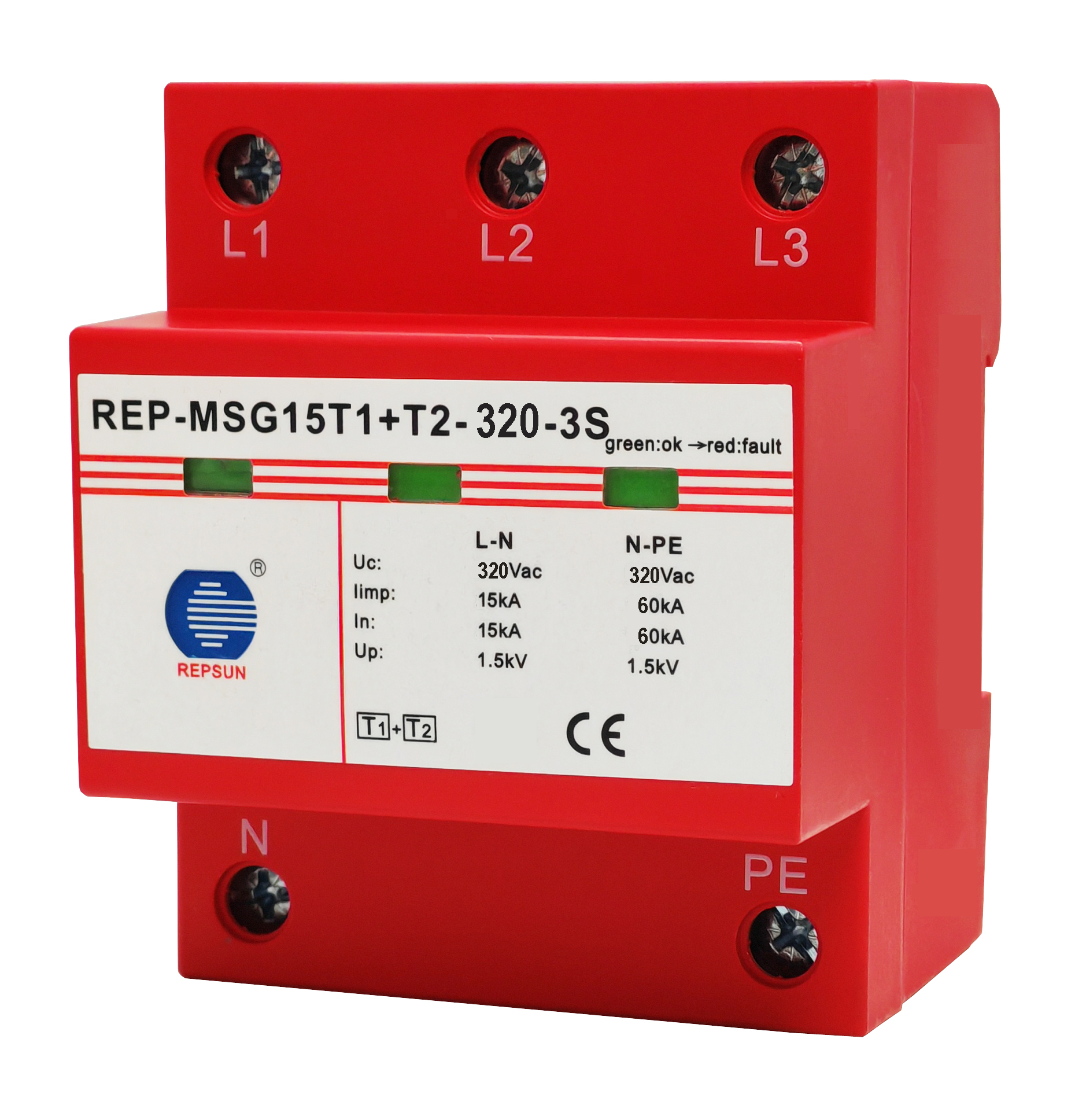

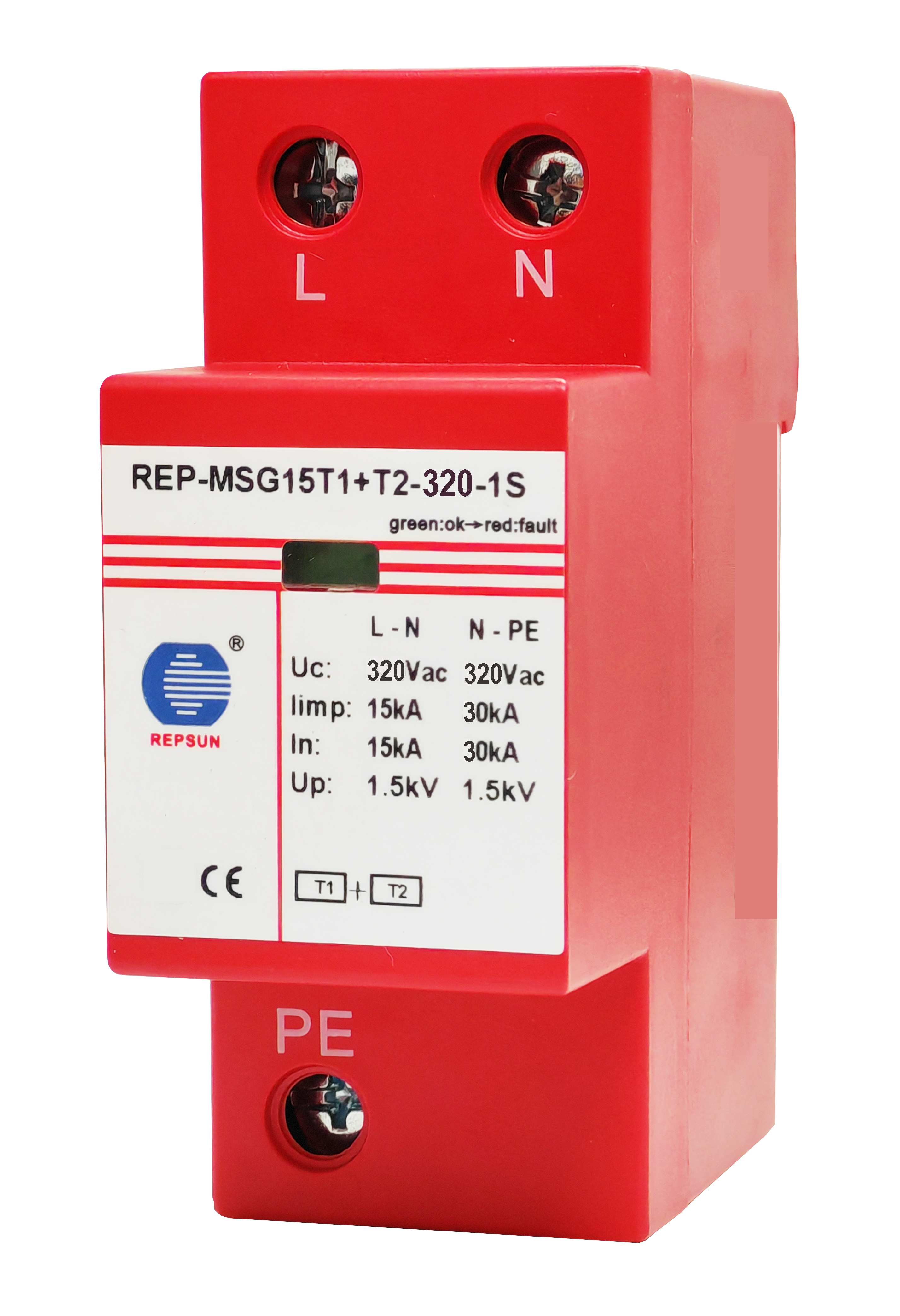

Product Picture

REP-MSG15 Series

Features

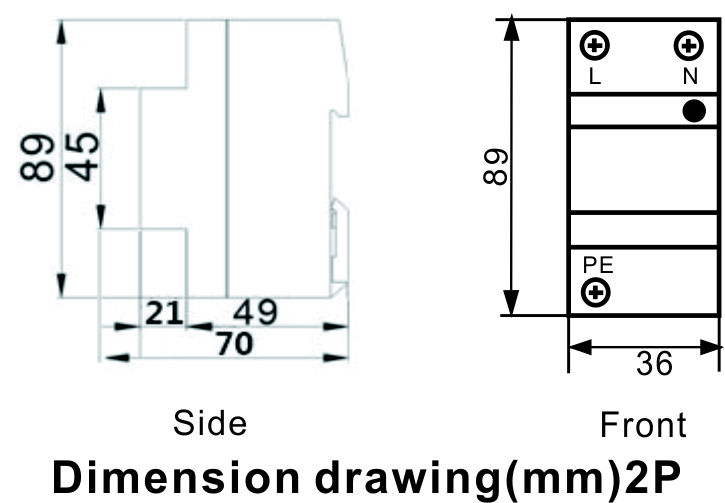

●Smallest size T1+T2 SPD, only 36mm for single phase, 72mm for three phases.

●Non exhausting encapsulated spark gap technology with extremely high surge capacity.

●High surge capacity of 15kA10/350μs per pole, no follow current.

●Voltage protection level(Up)≤1.5kV.

●LTR energy control technology, directly coordinated to next SPD without additional length.

Datasheet

Type	REP-MSG15T1+T2-320-XS
The SPD according to IEC/EN 61643	I+II/T1+T2
Energy coordination with terminal equipment(≤5m)	T1+T2+T3
Maximum continuous operating voltage(Uc)		320Vac
Lightning impulse current(10/350μs)(limp)[L-N,N-PE]	15kA/60kA
Nominal discharge current(8/20μs)(In)[L-N,N-PE]	15kA/60kA
Maximum discharge current(8/20μs)(Imax)[L-N,N-PE]	160kA
Voltage protection level(Up)	≤1.5kV
Operating temperature range	-40℃~+80℃
Response time	≤100ns
Failure indication	Green: Normal ; Red: Failure
Remote alarm contact	Remote alarm contact optional
Degree of protection	IP20
Enclosure material	Thermoplastic; extinguishing degree UL94-V0
Technical feature	No exhausting encapsulated spark gap technology
