PCB-used Surge Protector

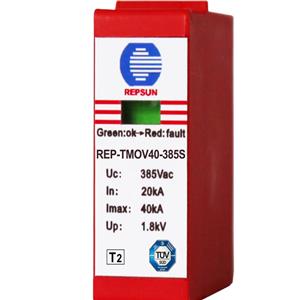

PCB electric board lightning surge SPD,thermal protected MOV(TMOV)

PRODUCTS DETAIL

Product Pictures

PCB-used Surge Protector 02

Part No

PCB-used Surge Protector 03

Part No

PCB-used Surge Protector 04

Part No

PCB-used Surge Protector 05

Part No

PCB-used Surge Protector 06

Diagram (REP-MPG25PCB)

PCB-used Surge Protector 07

Side (mm)

PCB-used Surge Protector 08

Front (MM) (1P)

PCB-used Surge Protector 09

Diagram (REP-MP20PCB / 10PCB)

Features

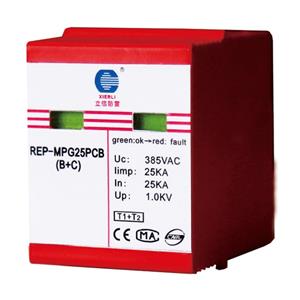

REP-MPG25PCB:
T1+T2 combination surge protector
Sealed metal spark gap technology with extremely high surge capacity
Low votlage protection level(Up≤1.5kV);fast response time(≤25ns)
Discharge capacity (Iimp: 10kA-25kA), no follow current
Application in the AC mains, service entrance, and heavy industrial etc.
Meeting IEC61643-11 2011, UL 1449 4th, GB18802.11-2016

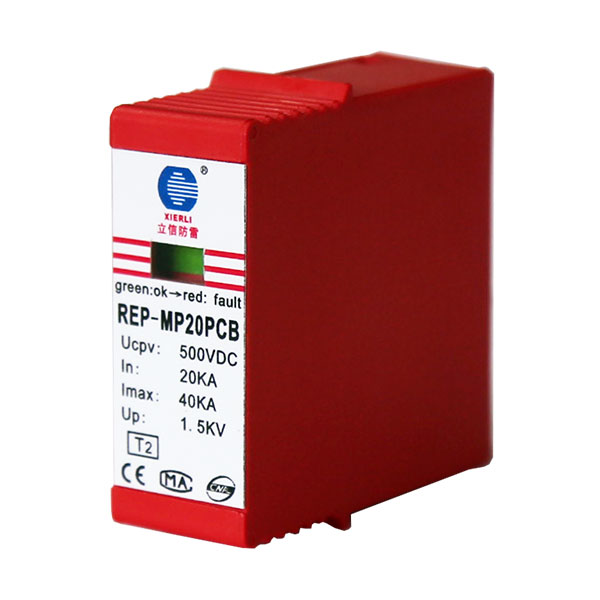

REP-MP20PCB/10PCB:
Wide operating temperature range and high reliability.
No need of back-up fuse
Discharge capacity (Imax: 20kA-40kA), low leakage current.
Application in the AC mains, service entrance, and heavy industrial etc.
Meeting IEC61643-11 2011, UL 1449 4th, GB18802.11-2016.

Datasheet

Type

REP-MPG25PCB

REP-MP20PCB

REP-MP10PCB

REP-MP10YPCB

The SPD according to IEC61643

T1+T2/I+Ⅱ

T2/Ⅱ

T2/Ⅱ

T3/Ⅲ

Maximum continuous voltage(Uc)

385VAC

385VAC

385VAC

275VAC

Lightning impulse current(10/350)Iimp

25KA







Nominal discharge current(8/20)In

25KA

20KA

10KA

10KA

Nominal discharge current(8/20)Imax



40KA

20KA

20KA

Voltage protection level(Up)

≤1.5KV

≤1.5KV

≤1.0KV

≤1.8KV

Response time

25ns

25ns

25ns

25ns

Operating temperature range

-40℃~+80℃

Remote alarm contact

Remote alarm contact optional

Degree of protection

Ip20

Failure indication

Green: Normal ; Red: Failure

Enclosure material

Flame retardant material  UL94-V0

Installation Diagram

PCB-used Surge Protector 10
PCB-used Surge Protector 11

Installation Details

PCB-used Surge Protector 12

Standard

1. IEC 61643:11-2016
2. UL 1449 4th
