T2 Surge Protector for Wind Turbine

Type2 surge protector SPD;Low voltage protection level;

PRODUCTS DETAIL

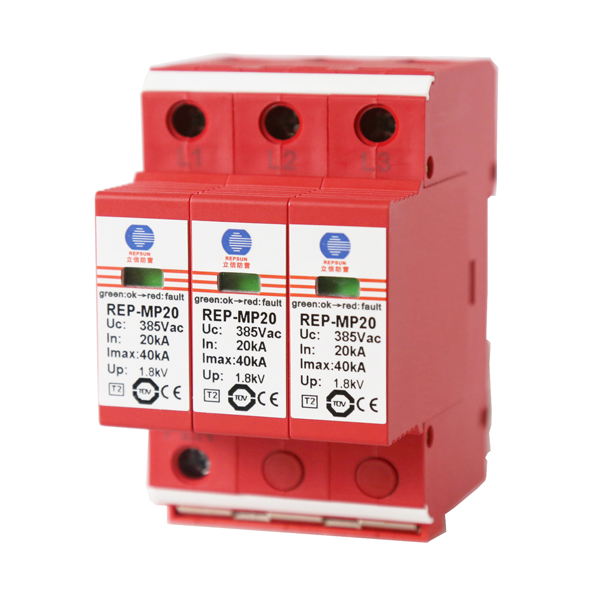

Product Picture

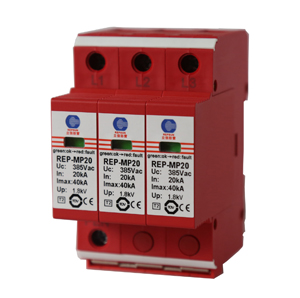

rep-mp20t2-385-5s-02

(MP20T2-385-5S)54mm





Features

Type2 surge protector comply with IEC61643-11;

Reliable supervision due to double integrated disconnection devices;
Low voltage protection level;
Optional to use without a fuse;
Pluggable design, 3+0 protection mode;
Remote alarm terminal optional.



Datasheet

Type

REP-MP20T2-385-5S

The SPD according to IEC/EN 61643-11

Type 2

Energy coordination with termini equipment (≤5m)

T2

Nominal AC voltage(Un)

690Vac

Maximum continuous voltage(Uc)

385Vac

Nominal discharge current(8/20) ln(L-N/N-PE)

20kA

Maximum discharge current(8/20) lmax(L-N/N-PE)

40kA

Response time

≤25ns

Voltage protection level Up @ln

1.8kV
Backup fuse
125Agl/gG
Temporary overvoltage(TOV) Ut
440V / 5sec.
Temporary overvoltage(TOV) Ut Characteristic

Withstand

Remote alarm contact
NO/NC/C, Isolated Form C
Remote alarm contact capability Un/In
AC:250/0.5A            DC:250V/0.1A;75V/0.5A

Remote alarm contact connecting wire

Max.1.5mm² or#16AWG

Remote communication contact type

Float switch contact
Ac switching capacity
250V/0.1A

Operating temperature range

-40℃...+80℃

Work/Fault indicator

Green: Normal ; Red: Failure

The minimum cross-sectional area of installation

2.5mm²solid/flexible

The maximum cross-sectional area of installation

16mm²flexible

Installation
35mm DINrail,according to EN 60715

Enclosure material

Red thermoplastic material ,UL 94v-0
The installation location
Indoor

Degree of protection

IP20

Size

3 modules

Certification
TUV
