Type1 SPD

Type1 SPD

PRODUCTS DETAIL

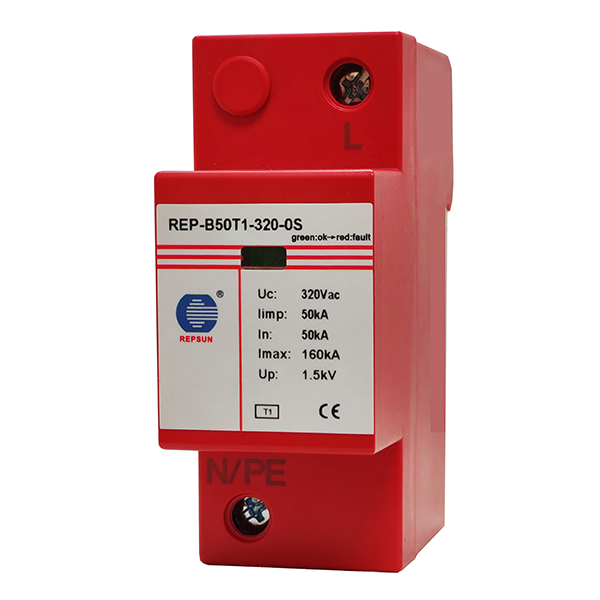

Product Picture

0s3x2

REP-B50T1-320-0S

--     0S---_1

Dimension drawing(mm)

---_1

Basic circuit diagram

Features

Type1 surge protector SPD.
Non exhausting encapsulated spark gap technology with extremely high surge capacity.
High follow current extinction and limitation due to no follow current.
Reliable supervision due to new LTR energy control technology.
With remote signaling contact optional.

Datasheet

Model

REP-B50T1-320-0S
The SPD according to IEC/EN 61643-11
T1
Nominal AC voltage (Un)
230/400Vac(50/60Hz)
Maximum continuous voltage(Uc)
320Vac(50/60Hz)
Lightning impulse current(10/350μs) Iimp
50kA
Nominal discharge current(8/20μs) In
50kA
Maximum discharge current(8/20μs) Imax
160kA
Response time tA
≤100ns
Voltage protection level Up@In
≤1.5 kV
Temporary over voltage(TOV)(UT)-Characteristic
≥400V/120min
Remote alarm contact
NC/C,
Remote alarm contact capability Un/In
AC:250/0.5A DC:250V/0.1A;75V/0.5A
Remote alarm contact connecting wire
Max.1.5mm² or #16AWG
Operating temperature range
-40℃...+80℃
Fault indicator
Green: Normal ; Red: Failure
Cross-sectional area (min.)
1.5mm² solid/flexible
Cross-sectional area (max.)
35mm² flexible
Installation
35mm DIN rail,according to EN 60715
Enclosure material
Red thermoplastic material ,UL94 V-0
Degree of protection
IP20
Size
2 modules
