Class B Power Surge Protector REP-MPG

Class B Power Surge Protector REP-MPG

PRODUCTS DETAIL

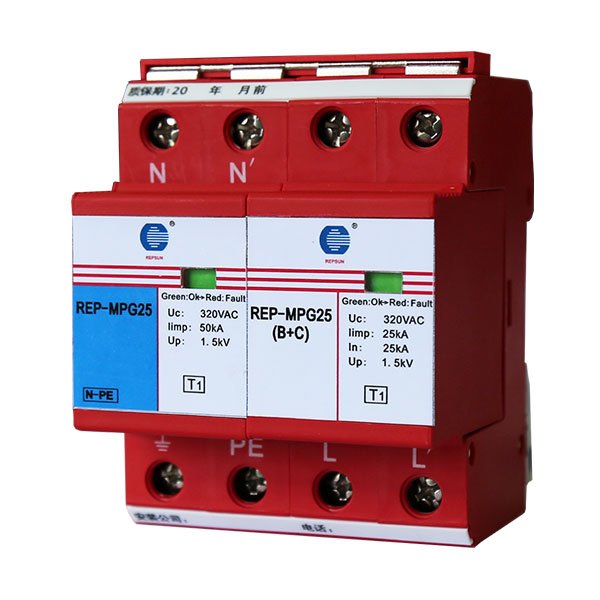

Product Pictures (MPG15. MPG25. MPG25NPE)

Power Surge Protector (Class B / Type 1) 02

Part No
(MPG15):115130(One Pole)
(MPG25):115110(One Pole)

Power Surge Protector (Class B / Type 1) 03

Part No
(MPG15):115132(2+0)、115131(1+1)
(MPG25):115112(2+0)、115111(1+1)

Power Surge Protector (Class B / Type 1) 04

Part No
(MPG15): 115133  (3+0)
(MPG25): 115113  (3+0)

Power Surge Protector (Class B / Type 1) 05

Part No
(MPG15): 115135(3+1)、115134(4+0)
(MPG25): 115115(3+1)、115114(4+0)

Power Surge Protector (Class B / Type 1) 07

Side (mm)

Power Surge Protector (Class B / Type 1) 08

Front (mm)(4P)

Power Surge Protector (Class B / Type 1) 06

Diagram (4+0)

Features

Class B / Type 1 pluggable surge protector SPD
Sealed metal spark gap technology with extremely high surge capacity
High follow current extinction and limitation due to no follow current technology
LTR energy control technology without additional cable length

Datasheet

Type

REP-MPG15

REP-MPG25

REP-MPG25NPE

The  SPD  according  to IEC61643:11

I/T1

I/T1

I/T1

Nominal AC voltage (Un)

230/400VAC

230/400VAC

230/400VAC

Maximum continuous voltage (Uc)

320VAC

320VAC

320VAC

Lightning impulse current(10/350) Iimp

15kA

25kA

50kA

Nominal discharge current(8/20)In

15kA

25kA

50kA

Maximum discharge current(8/20)Imax

30kA

50kA

100kA

Voltage protection level (Up)

≤1.5kV

≤1.5kV

≤2.0kV

Response time

100ns

100ns

100ns

Operating temperature range

-40℃~+80℃

Remote alarm contact

Remote alarm contact optional

Degree of peotection

IP20

Failure indication

Light-off: normal          Light-on: Failure

Enclosure material

Flame retardant material UL94-V0

Installation Diagram

Power Surge Protector (Class B / Type 1) 09
Power Surge Protector (Class B / Type 1) 10
Power Surge Protector (Class B / Type 1) 11
Power Surge Protector (Class B / Type 1) 12
Power Surge Protector (Class B / Type 1) 13

Installation Details

Power Surge Protector (Class B / Type 1) 17

Installation

Power Surge Protector (Class B / Type 1) 15

Failure Indication

Power Surge Protector (Class B / Type 1) 16

Installation location

Standard

1. IEC 61643:11-2016
2. UL 1449 4th
