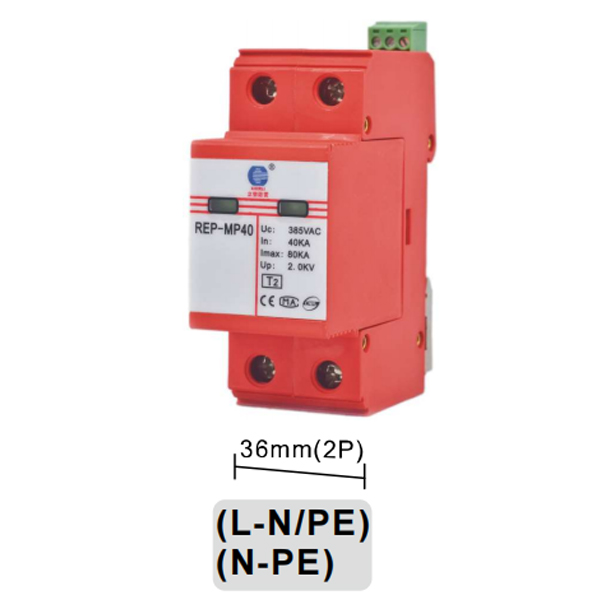

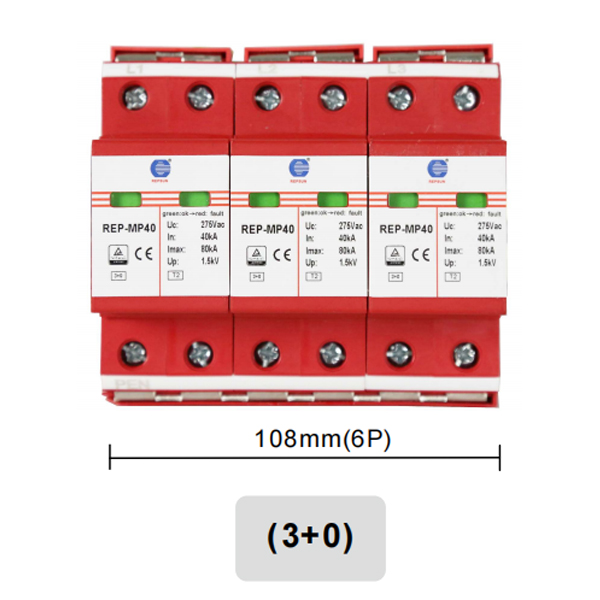

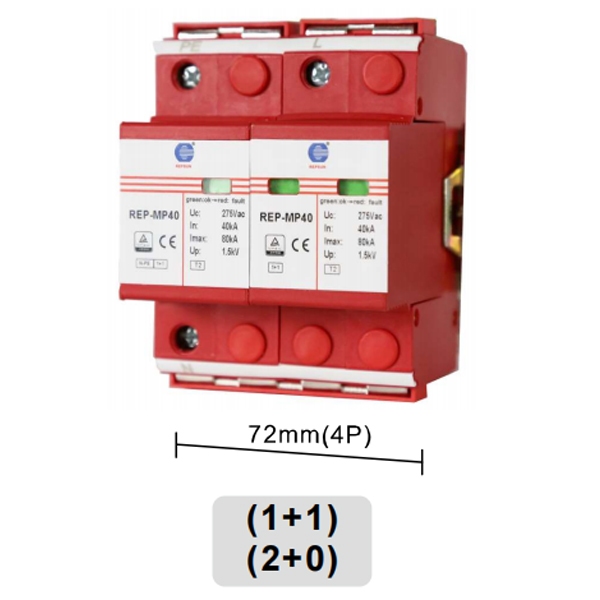

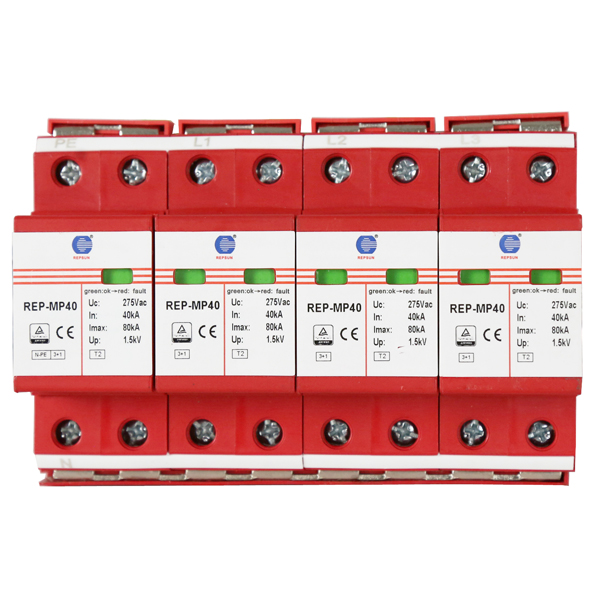

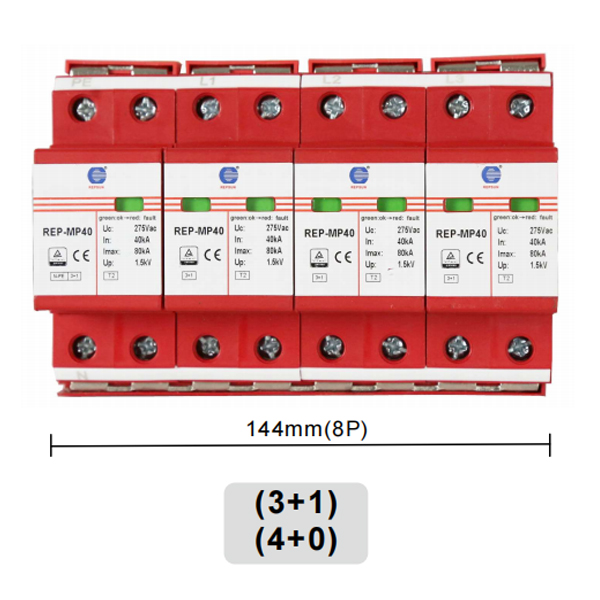

MP40 Type2 Power Surge Protector

PRODUCTS DETAIL

PRODUCTS PICTURES

Features

Type2 surge protector SPD.

Fast response(≤25ns); low protection level (≤2.0kV).

Reliable safety due to double integrated disconnectors with double protections.

Optional to use without a back up fuse.

Failure indication window, remote alarm terminal optional.

Datasheet

Type

REP-MP40T2-XXX-XS

TheSPDaccordingtoIEC/EN61643

II/T2

Maximum continuous voltage Uc [L-N]

440Vac

385Vac

320Vac

275Vac

150Vac

Maximum continuous voltage Uc [N-PE]

255Vac

Nominal discharge current(8/20μs)In

40kA

Maximum discharge current(8/20μs)Imax

80kA

Voltage protection level Up [L-N]

≤2.2kV

≤2.0kV

≤1.8kV

≤1.5kV

≤1.2kV

Voltage protection level Up [N-PE]

≤1.5kV

Response time

25ns[L-N/PE] / 100ns[N-PE]

Operating temperature range

-40℃~+80℃

Remote alarm contact

Remote alarm contact optional

Degree of protection

IP20

Failure indication

Green: Normal ; Red: Failure

Enclosure material

Thermoplastic; extinguishing degree UL94-V0

Technical feature

Double integrated disconnection devices with double protections
