T2 surge protector (signal system) for PV

PRODUCTS DETAIL

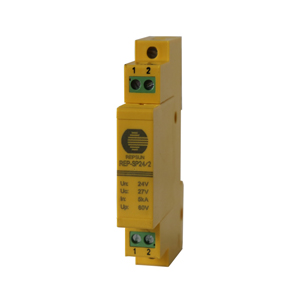

Product Picture

REP-SP24/2

Features

REP-SP24 can work in the various voltage of 5-60Vdc;

Suitable for signal series application;

DIN rail easy mounting;

Pluggable, and the work signal would not be interrupted when the module is pulled out;

Low insertion impedance without affecting signal transmission;

LED light failure indication, and with remote signal contact optional.

Datasheet

Type	REP-SP24/2
The SPD according to IEC 61643-1/-11	Type 2 (C2)
The SPD port	two ports
Nominal AC voltage (Un)	24V
Maximum continuous voltage (Uc)	27V
Nominal discharge current(8/20μs) In	5kA
Maximum discharge current(8/20μs) Imax	10kA
Voltage protection level Up	60V
Rated load current IL	0.5A
Maximum transmission rate	2Mbps
Insertion loss	＜0.1dB
Degree of protection	IP20
Protection methods	Balance/Imbalance (optional)
Grounding methods	Direct grounding/Indirect grounding (optional)
Failure Mechanism	The communication line is short-circuited or disconnected to the ground
