Surge Protector for Signal System
PRODUCTS DETAIL

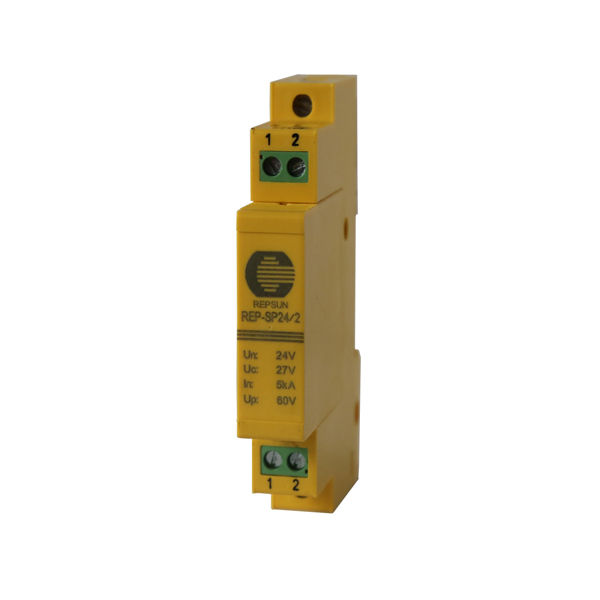

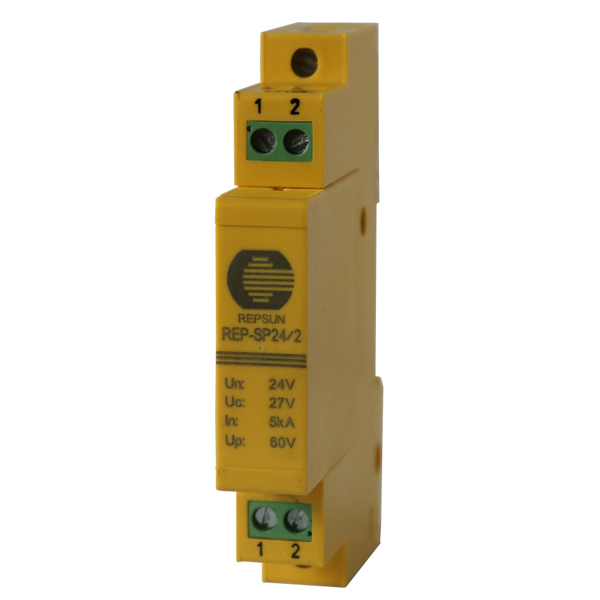

Product Picture
REP-SP24/2 14mm(1P)
Basic circuit diagram
Dimension drawing
Features
REP-SP can work in the various voltage of 5-60Vdc
Pluggable surge protection for DIN rail easy mounting
Signal transmission is not interrupted when exchanging module
Two-stage protection circuit; suitable to use RS232 or RS485 surge protection
Low insertion impedance without affecting signal transmission
LED light failure indication, and with remote control contact
Datasheet
|
Type |
REP-SP24/2 |
|||||
|
SPD interface |
Two interfaces |
|||||
| The SPD according to IEC/EN 61643 | T2 | |||||
| Nominal d.c. voltage (Un) | 24V | |||||
|
Max. continuous operating d.c. voltage (Uc) |
27V |
|||||
|
Load current insertion (IL) |
0.5A |
|||||
|
Nominal discharge current (8/20 μs) (In) |
5kA |
|||||
|
Max discharge current (8/20 μs) (Imax) |
10kA |
|||||
|
Voltage protection level (Up) |
60V |
|||||
|
Maximum transmission rate |
2Mbps |
|||||
|
Insertion loss |
<0.1dB |
|||||
|
Degree of protection |
IP20 |
|||||
|
Test standards |
IEC61000-4-5; IEC61643:21 |
|||||
|
Online Replacement |
Yes |
|||||
