REPSUN ESE Tester

REPSUN ESE Tester

PRODUCTS DETAIL

Test Procedure

REPSUN ESE Tester 06

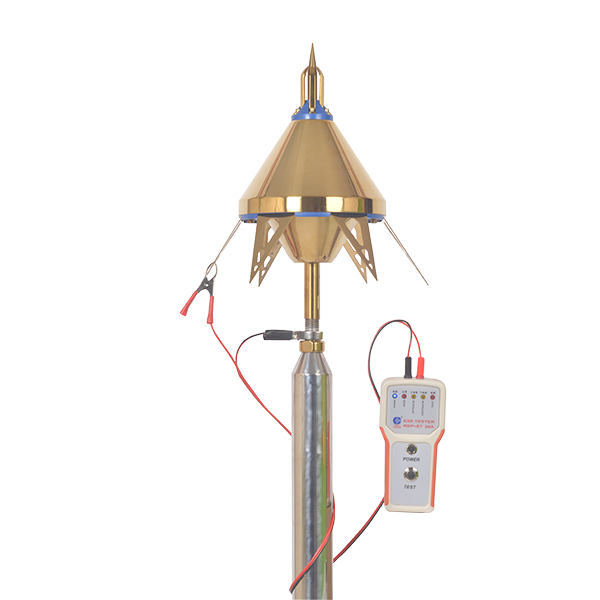

The procedure for testing the air terminal is following:
1: Turn on the ESE tester by pressing the power button, then the power light will stay on.
2: Test the up electrode of ESE lightning rod.
    Connect the test terminal red color at the up electrode of the ESE lightning rod, and mind not to touch the middle rod.
3: Connect the test terminal black color at the ground rod of ESE lightning rod.
4: Press the test button, the tester beeps and all LEDs light up momentarily, after a couple of seconds, if the up electrode of the ESE lightning rod is working correctly, the light of the up electrode will stay on, and the normal indication will stay on, otherwise, the fault indication will stay on.
5: Test the down electrode of ESE lightning rod.
    Connect the test terminal red color at the down electrode of the ESE lightning rod.
6: Connect the test terminal black color at the ground rod of ESE lightning rod.
7: Press the test button, the tester beeps and all LEDs light up momentarily, after a couple of seconds, if the up electrode of the ESE lightning rod is working correctly, the light of the down electrode will stay on, and the normal indication will stay on;
    Otherwise, the fault indication will stay on.
8: After the test finished, disconnect the connectors from the lightning rod.
9: Turn off the device using the power switch ON. The power ON LED should turn off.
10: Save the device, disconnecting the test connectors of the lightning rod.
Warnings and Recommendations:
The ESE tester is designed exclusively for the evaluation of the current modules of REPSUN ESE lightning rods. ESE lightning rods from other manufacturers may not be compatible with REPSUN ESE tester technology.


REPSUN ESE Tester 02

Dimensions (mm)

REPSUN ESE Tester 03

REPSUN ESE Tester

REPSUN ESE Tester 04

REPSUN ESE Tester

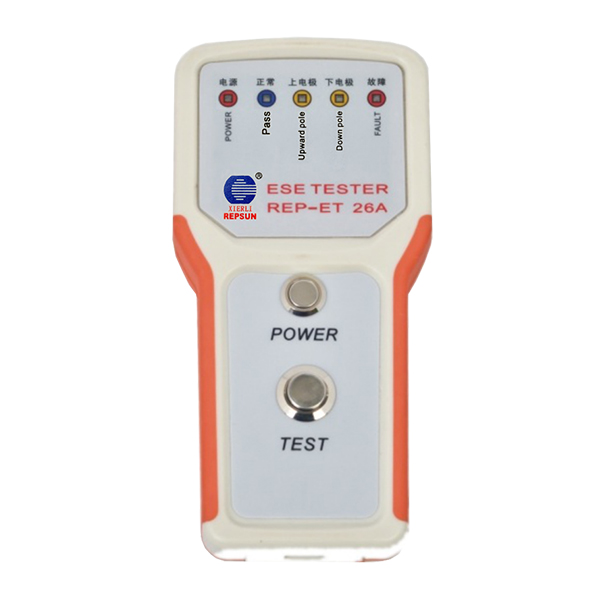

REPSUN ESE TESTER

Type

REP-ET 26A

WEIGHT(kg)

0.415KG

Features

The tester is specially designed for a perfect portability for both installation and mounting.

It has isolated cables and transport bag. Each circuit of ESE lightning rods can be tested by this ESE tester.

Easy maintenance.

Power

Four 1.5V AA type batteries

Part. No.

710018

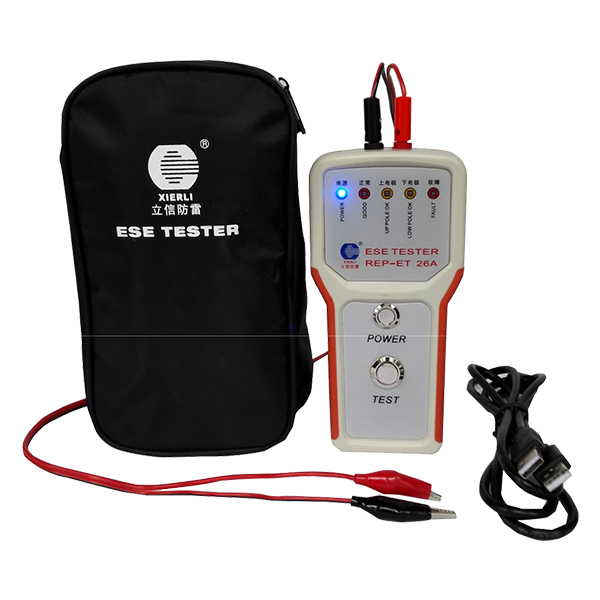

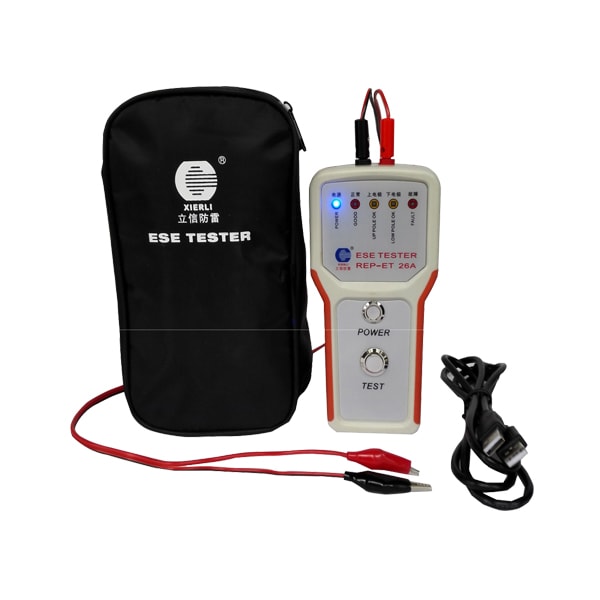

Contents: Transport bag
SMART-ESE Tester
Black cable +crocodile clip (Earth)
Red cable + crocodile clip (Upper&down electrodes)
