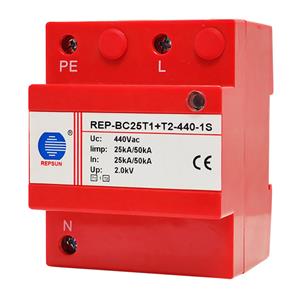

Class B+C Power Surge Protector REP-BC25

Class B+C Power Surge Protector REP-BC25

PRODUCTS DETAIL

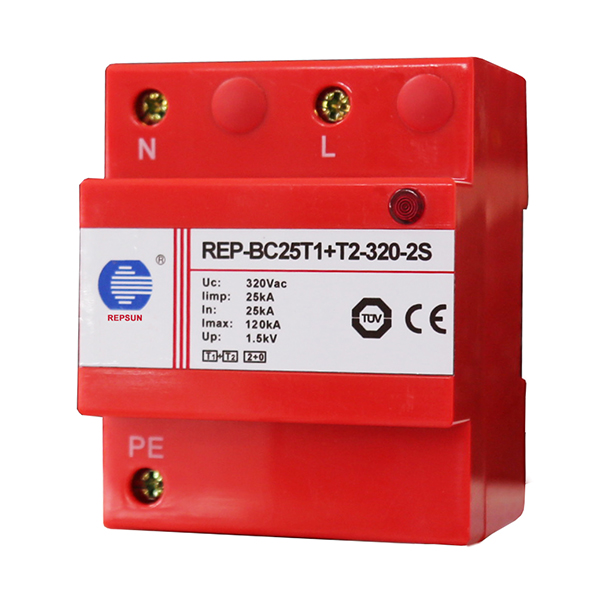

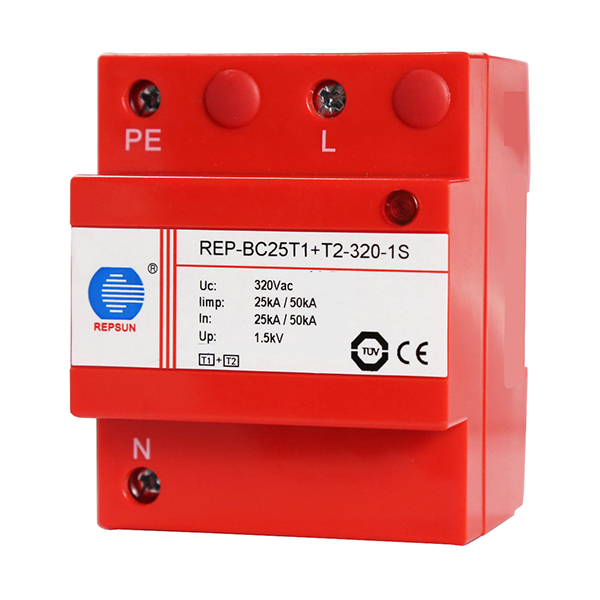

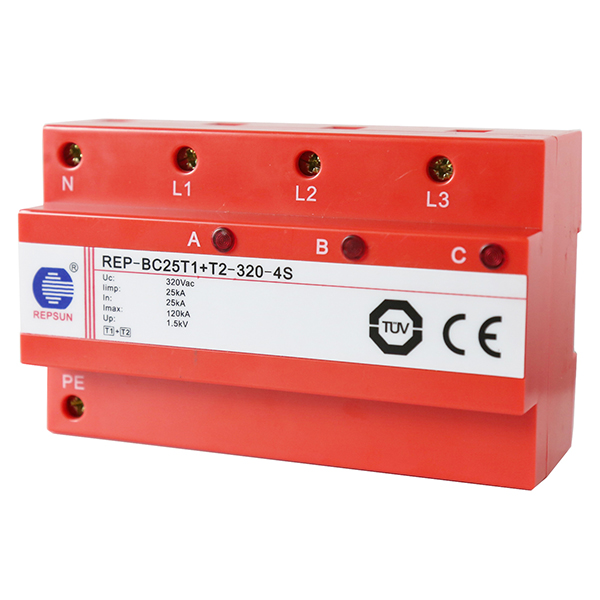

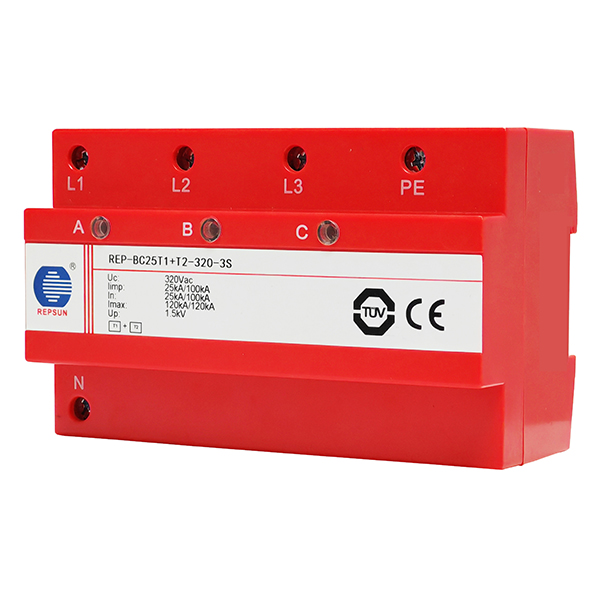

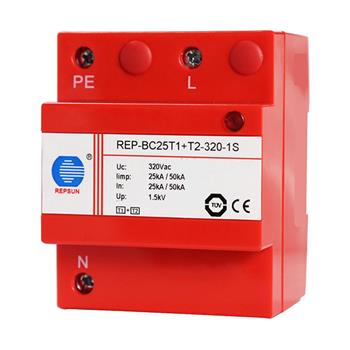

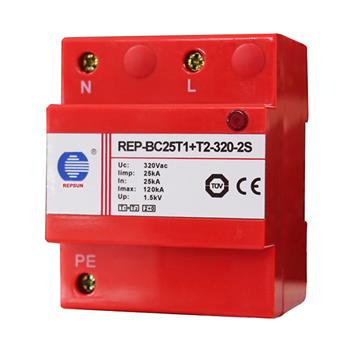

Product Pictures (REP-BC25T1+T2-320-XS)

rep-bc25-1

Part No
111110 (One Pole)

bc25-2

Part No
111112 (2+0)
111111 (1+1)

bc25-3

Part No
111115 (3+0)

bc25-4

Part No
111113 (3+1)
111114(4+0)

Power Surge Protector (Class B+C / Type T1+T2) BC25 06

Side (mm)

Power Surge Protector (Class B+C / Type T1+T2) BC25 07

Front (mm)(4P)

Power Surge Protector (Class B+C / Type T1+T2) BC25 08

Diagram (4+0)

Power Surge Protector (Class B+C / Type T1+T2) BC25 09

Diagram (2+0)

Features

Class B+C/Type T1+T2 combination surge protector SPD
Sealed metal spark gap technology coordinated with MOV technology
High surge discharge capacity and no follow current
Fast response time(≤25ns), low protection level≤1.5kV

Datasheet

Model

REP-BC25T1+T2-320-XS

The SPD according to IEC 61643-1/-11

Type 1+Type 2

Max. continuous operating voltage (a.c.)Uc

320Vac

Lightning impulse current(10/350μS)limp(L-N/N-PE)

25kA/50kA

Nominal discharge current(8/20μs) In(L-N/N-PE)

25kA/50kA

Maximum discharge current(8/20μs) Imax(L-N/N-PE)

100/200kA

Response time(t.)

≤25ns

Voltage protection level Up

≤1.5 kV

Follow current extinguishing capability a.c. Ifi(L-N/N-PE)

25kArms/100Arms

Follow current limitation/Selectivity

No tripping of a 20 A gG fuse up to 25KArms(prosp)

Temporary over voltage (TOV)(UT)-Characteristic

400V/120 min.-withstand

Remote alarm contact

NO/NC/C,Isolated Form C

Remote alarm contact capability Un/In

AC:250/0.5A   DC:250V/0.1A;75V/0.5A

Remote alarm contact connecting wire

Max.1.5mm² or#16AWG

Operating temperature range

-40℃...+80℃

Fault indicator

Light-off(normal);Light-on(failure)

Cross-sectional  area (min.)

10 mm²solid/flexible

Cross-sectional  area (max.)

50mm²stranded/35mm²flexible

For mounting on

35 mm DIN rail

Enclosure material

Red thermoplastic ,UL 94 V-0

Degree of protection

IP 20

Size

8modules

Installation Diagram

Power Surge Protector (Class B+C / Type T1+T2) 09
Power Surge Protector (Class B+C / Type T1+T2) 10
Power Surge Protector (Class B+C / Type T1+T2) 11
Power Surge Protector (Class B+C / Type T1+T2) 12
Power Surge Protector (Class B+C / Type T1+T2) 13

Installation Details

Power Surge Protector (Class B+C / Type T1+T2) BC25 10

Installation

Power Surge Protector (Class B+C / Type T1+T2) BC25 11

Indication

Power Surge Protector (Class B+C / Type T1+T2) BC25 12

Installation location

Standard

1. IEC 61643: 11-2016
2. UL 1449 4th

Request A Quote

refresh!

Related Products

Power Surge Protector (Class B+C / Type T1+T2)

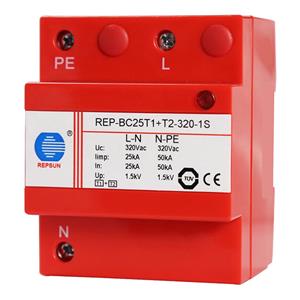

Class B+C Power Surge Protector REP-BC25

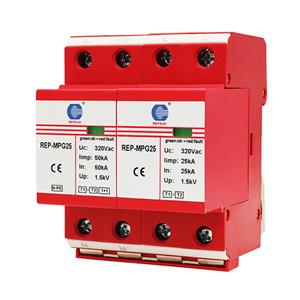

Power Surge Protector REP-MPG25(1+1)
